02 is rail-based clamp for solar installation on standing seam metal roof for Lysaght Klip-lok700 seam roofing

Features Components Technical Data Videos Downloads Projects

WOCHN Standing seam clamp AC-02 is rail-based clamp for solar installation on standing seam metal roof for Lysaght Klip-lok roofing, specifically made for Lysaght Klip-lok 700 metal seam roofing with similar dimension. The clamp maintains the elegance of your standing seam metal roof with no harm to the rood material. No harm equals no penetrative that means weatherproof for the roof to ensure the rooftop longer lifespan. And also ensure that must be mounted to the roof with permanence and durability. It’s simply compatible with WOCHN L feet mount system to make the system more strong and robust. Pre-assembled setscrew for super quick installation.Installation is as simple as placing the clamp on the seam and tightening the setscrew to the specified tension to reach maximum holding strength.

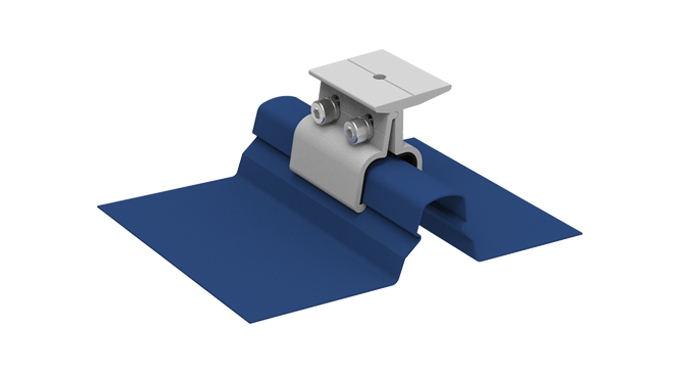

Features

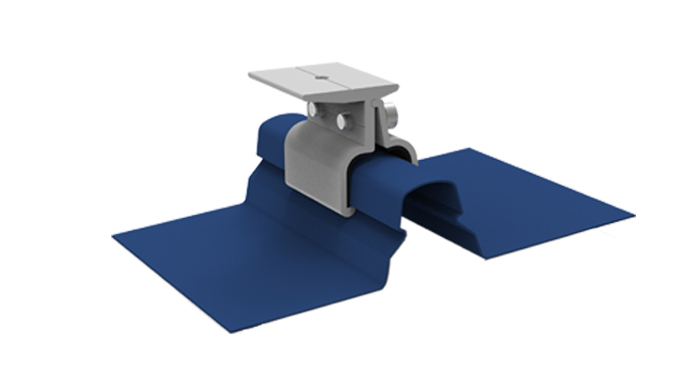

Non-penetrating and Safe

Installation is as simple as placing the clamp on the seam and tightening the setscrew to the specified tension to reach maximum holding strength

It's weatherproof because of no penetrative, which to guarantee the rooftop longer lifespan

OEM Design

02# Clamp is for Lysaght Klip-lok 700 metal seam roofing，speed deck ultra and with similar dimension Lysaght Klip-lok standing seam metal roof

OEM standing seam clamp designing is worakable, please let us know your standing seam sheet details if you need OEM design

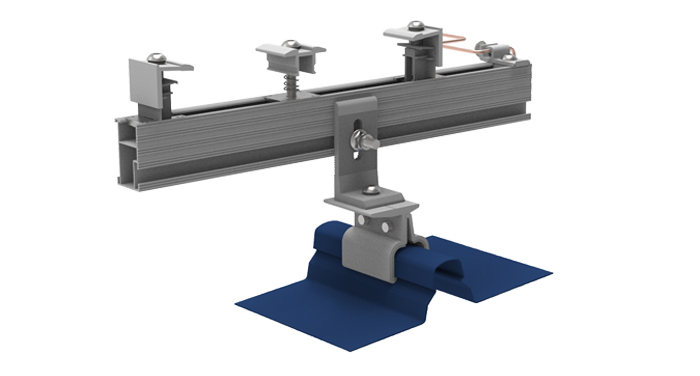

Flexibility

Easy compatible with WOCHN L feet mount system to make both portrait and landscape installation are avaliable

Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles

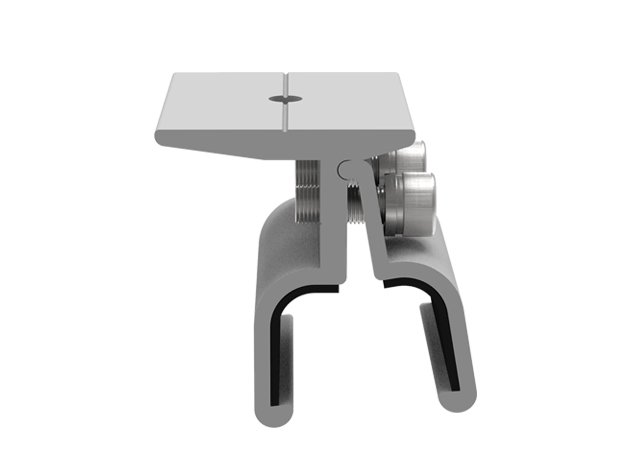

Components

Part Name	Quantity	Specification	Material
Clamp	1	60*50 mm	Anodized Aluminium 6005-T5
Side screw	2	M8*30mm	SUS304
EPDM mat	1	40*60	EPDM

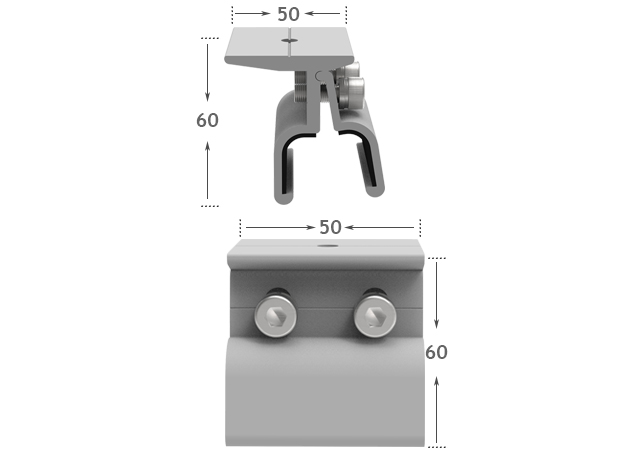

Technical Data

unit:mm

Max pull out load vertical to roof:	7.8KN
Screw tension:	up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.80%
Modulus of Elasticity：	69.0 Ga

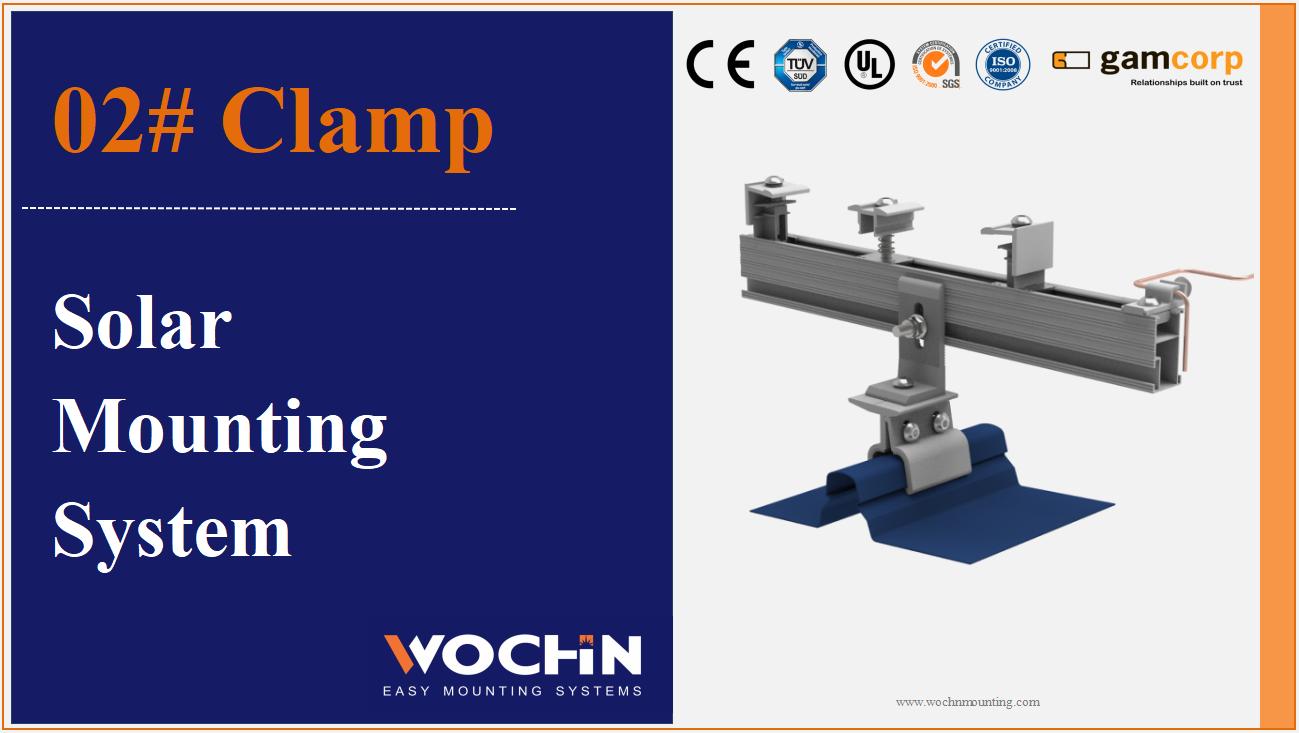

Video

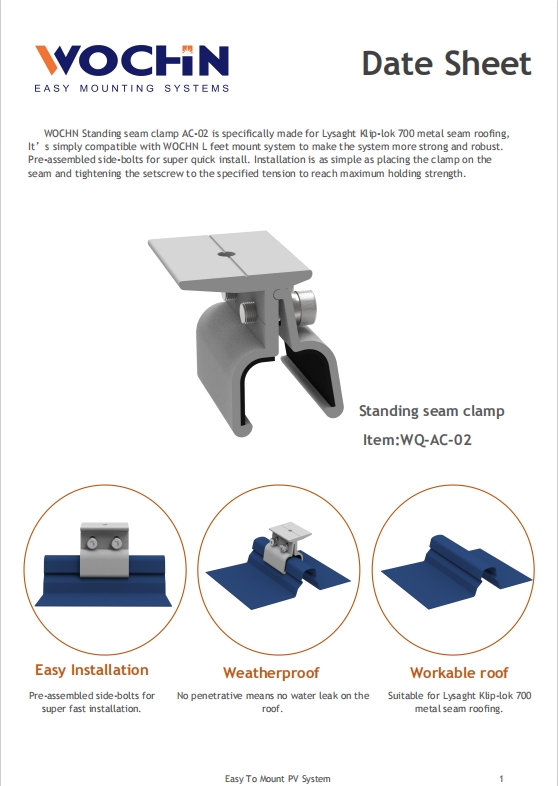

Downloads
