SU Ground Solar Mounting System

Features Components Technical Data Downloads

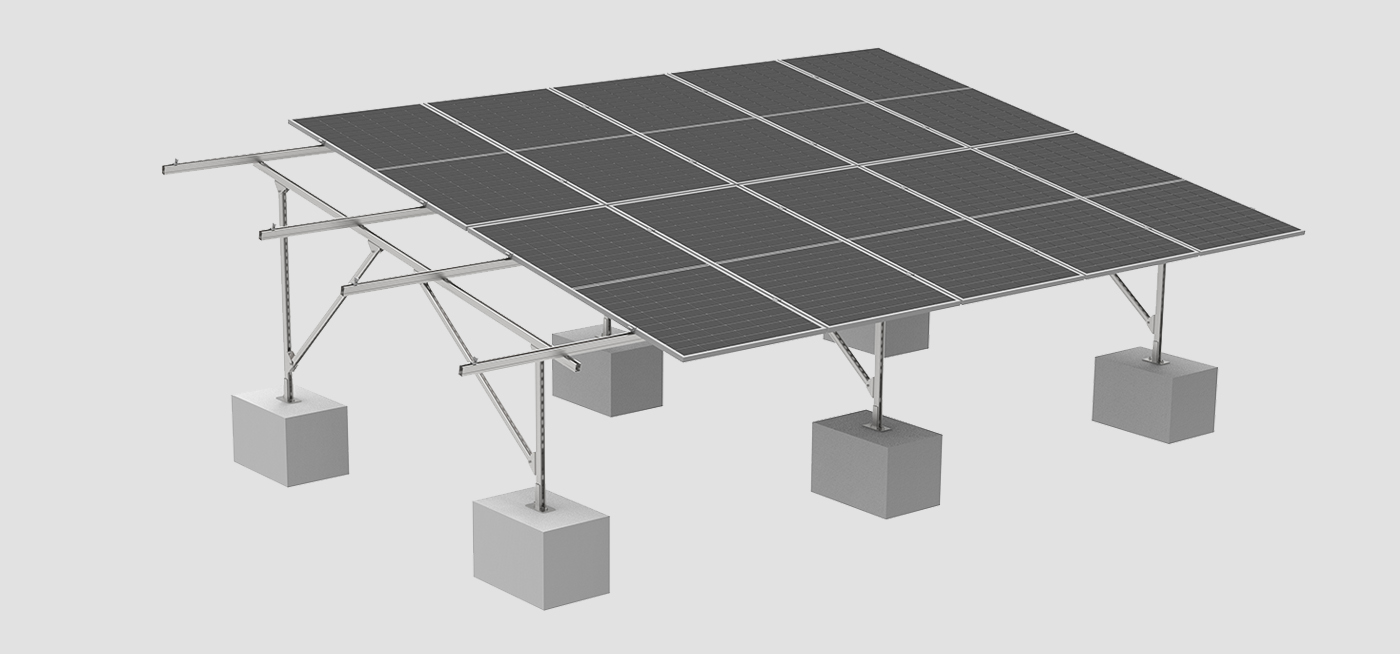

WOCHN SU Ground Solar Mounting System is a rugged PV mounting system designed to create a cost-effective structure to meet any site or terrain challenges. It is easy to install with only a few structural parts, no drilling, welding or heavy machinery required. Pre-assembled components save time on site installation. In addition, the system can be used with a variety of foundation options, including concrete foundations and anchor bolts. Suitable for soil classes 2-4. In addition, we can also provide customized solutions and detailed quotations including all structural calculations according to customer needs.

Features

Wide range of usage

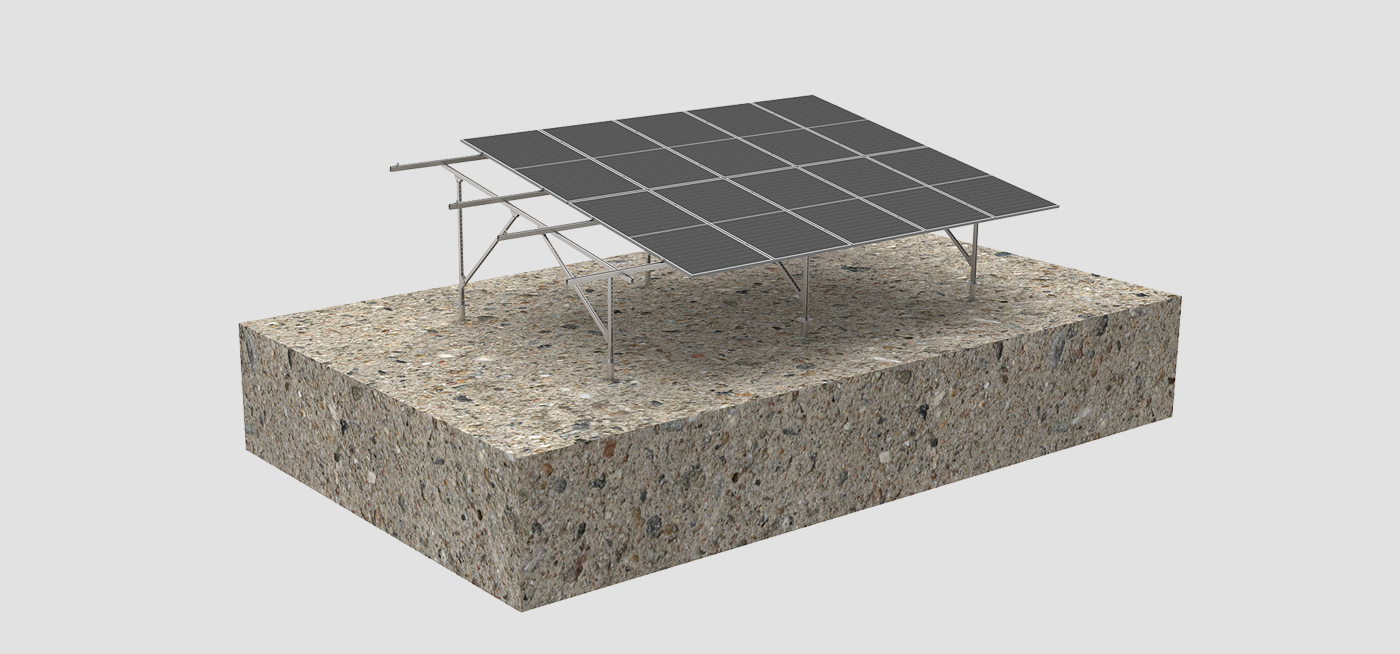

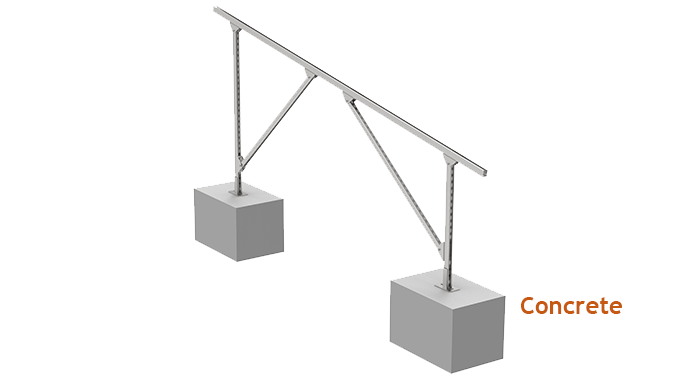

Concrete and ground screw as foundation are available

Increase height that used on flat roof with limited space

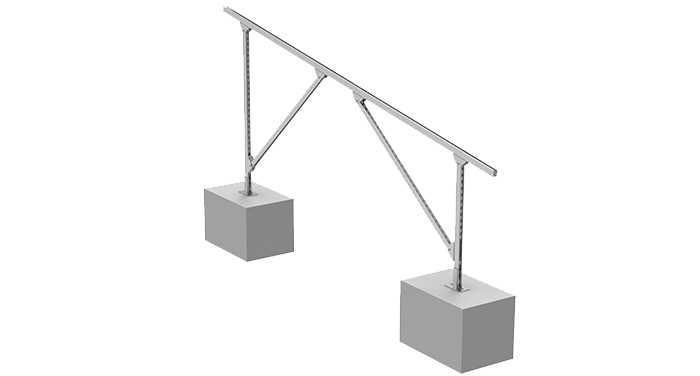

Long-lasting and reliable

Long-lasting thanks to hot deep galvanized steel material or Zinc aluminum magnesium material used, high corrosion resistance

The U steel section full used in the System, are designed and certificated to load big wind speed and snow

Designing load base on EN1991 and meet other international standard

OEM technical support

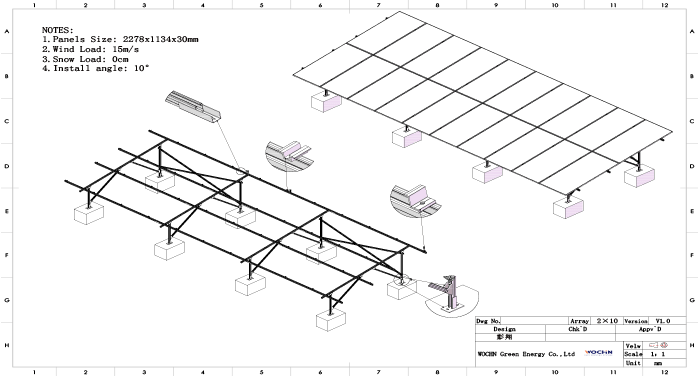

WOCHN do customized support, including:Customized technical drawing,customized force loading report and customized length production.Just tell us below, we will do the OEM service for you:

Unit array or layout drawing

Solar modules specification

Minimum height required

Tilt angle required

Foundation type

Maximum wind speed

Maximum snow load

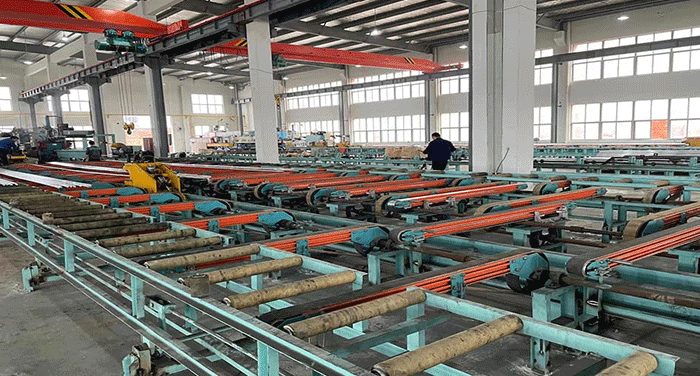

Fast delivery for MW+ projects

Auto-drilling machine to ensure fast cutting and drilling

Professional assemble team and package team

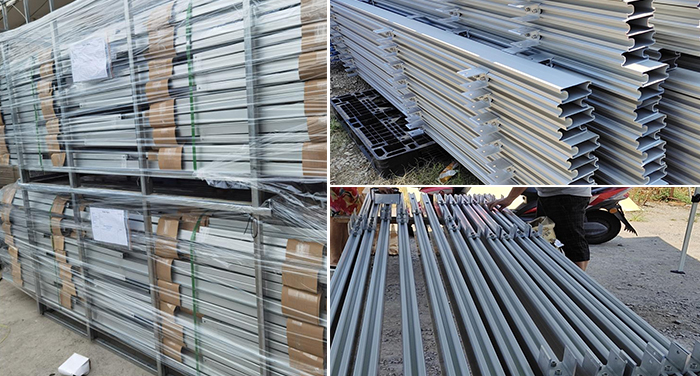

Easy-to-install and time-saving

Pre-assembled components to save onsite installation time

Low weight for transportation and assembly

Prepared directly for assembly

Components

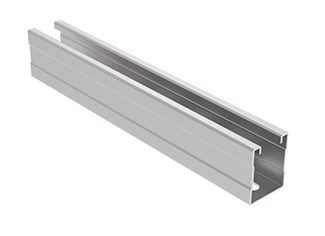

Beam

For connecting SU Leg,double support

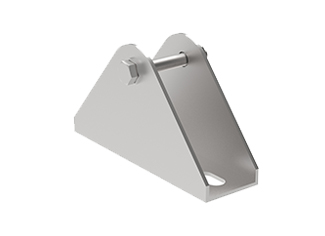

Connector

For connecting SU Leg,double support

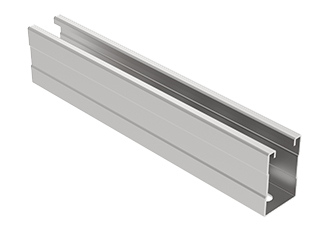

U-Purlin

For connecting SU Leg,double support

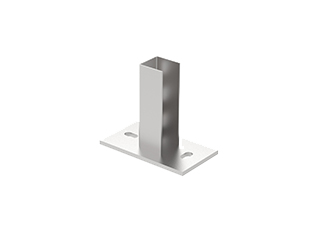

Base

For connecting SU Leg, double support

Purlin Splice

For connecting U-purlin,on the beam

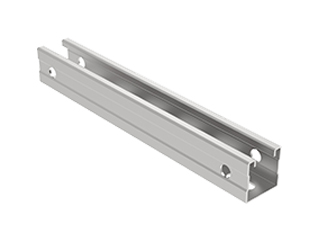

Brace

For connecting SU Leg,double support

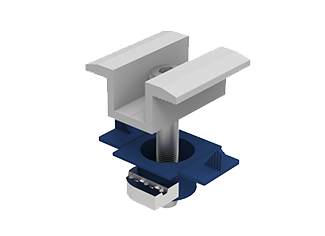

Mid-clamp

For 30-35mm thickness modules

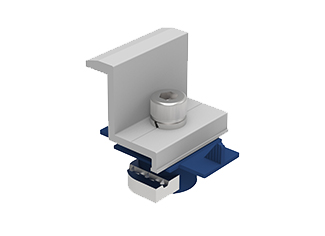

End-clamp

For 30-35mm thickness modules

Technical Data

Product name	SU Mount System
Application	Ground
Inclination	Customized
Material	Q235 Steel
Finish	HDG or Mac 65um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Landscape
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Downloads

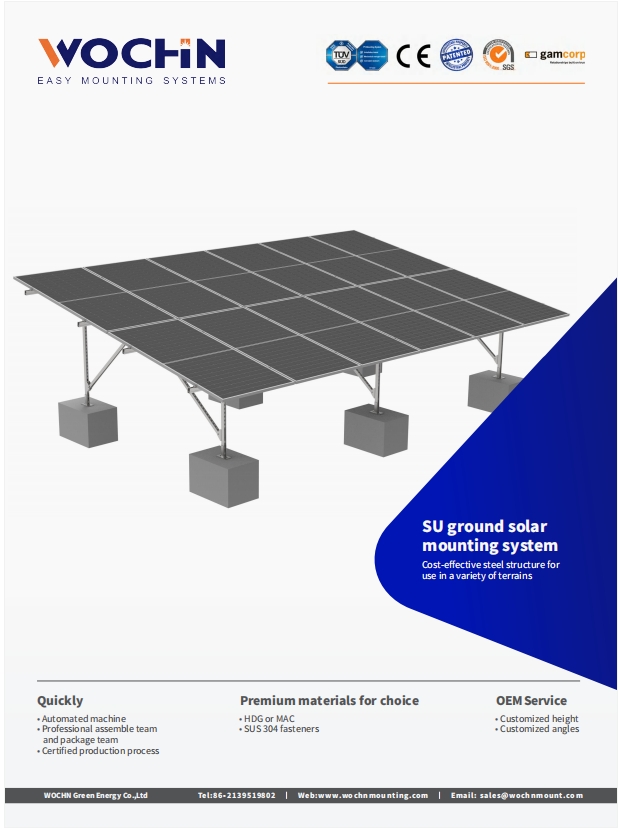

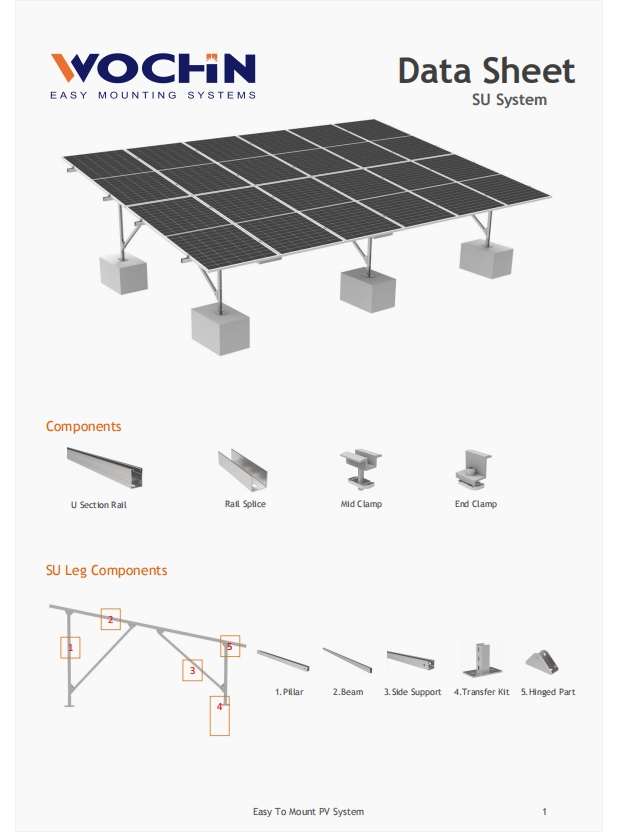

SU Ground Mount System Data Sheet

Download
