Export SC Ground Solar Mounting System

Features Components Technical Data Downloads

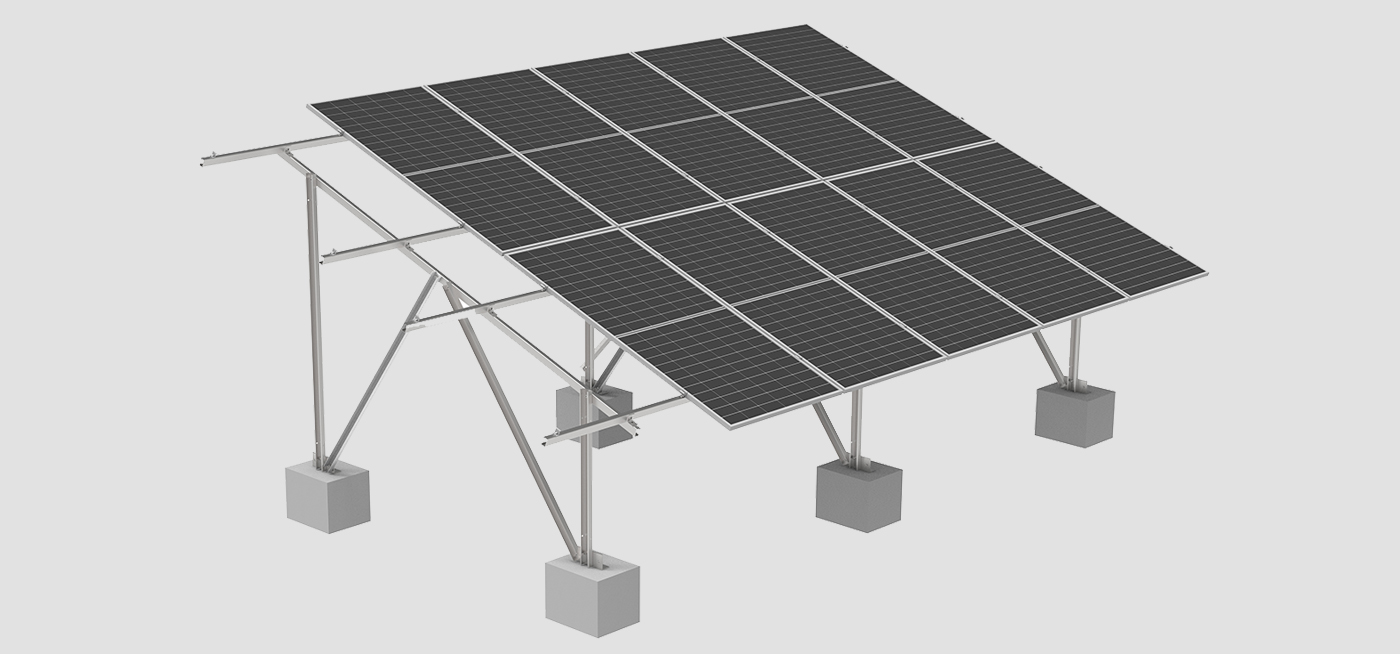

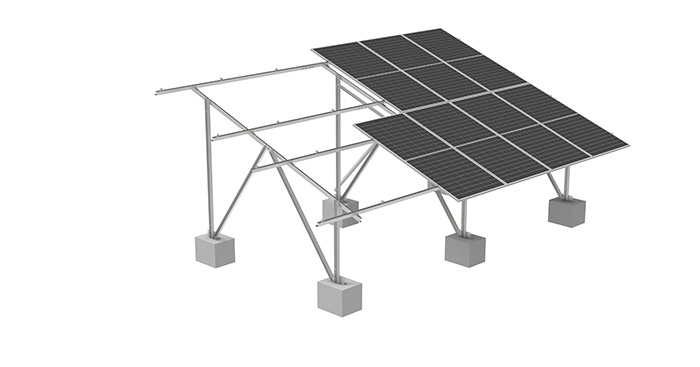

WOCHN SC ground mount system is reliable facility for PV mounting systems installation in any terrain area. Installation is simple with only a few structural components. Strong pile support for easy and fast for fastest mechanized operation and installation.We also provide customized solutions and detailed offers including all structural calculations. Depending on customers' requirements, environmental conditions, we use long-lasting, high-quality galvanizing steel or aluminium structures to ensure longer lifespan and high resistance to corrosion

Features

Wide range of usage

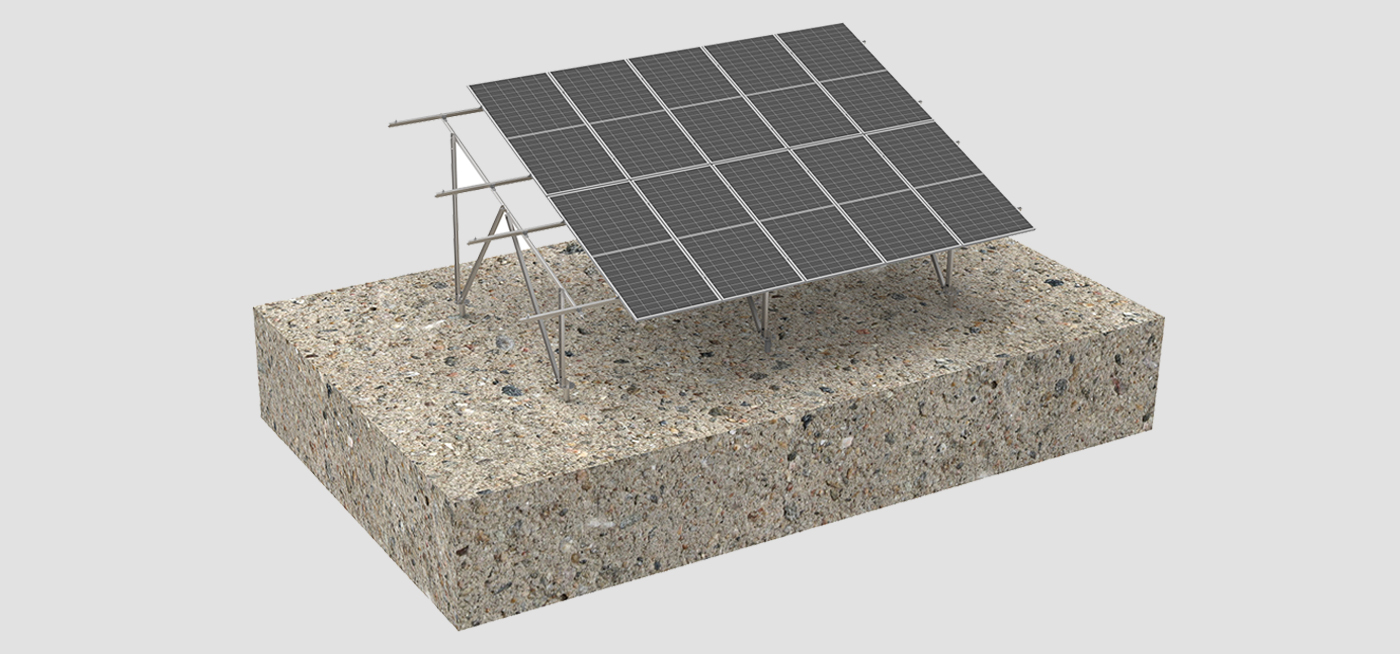

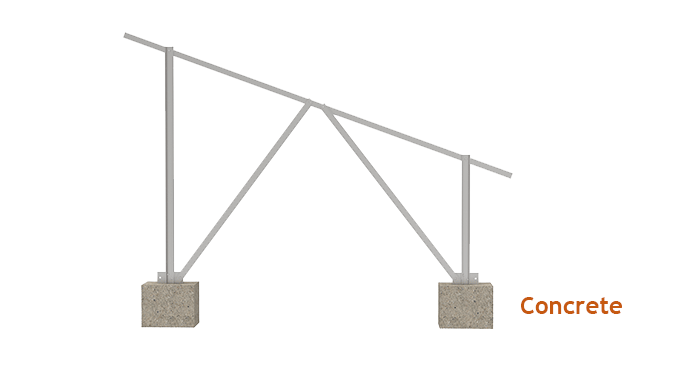

Concrete and ground screw as foundation are available

Increase height that used on flat roof with limited space

Suitable for all solar modules installation

Height can be from 0 to 2500mm

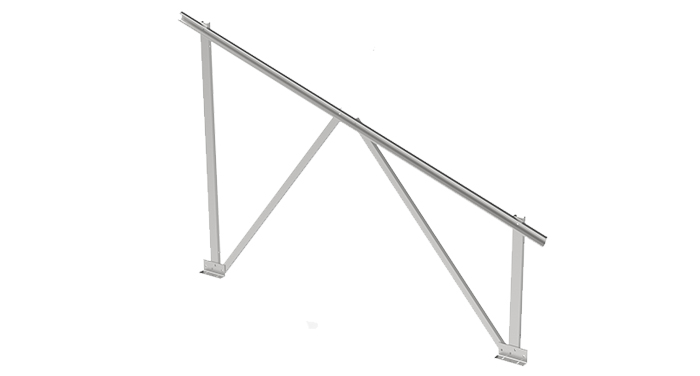

Long-lasting and reliable

Long-lasting thanks to hot deep galvanized steel material or Zinc aluminum magnesium material used, high corrosion resistance

The C steel section full used in the DP System, are designed and certificated to load big wind speed and snow

Designing load base on EN1991 and meet other international standard

OEM technical support

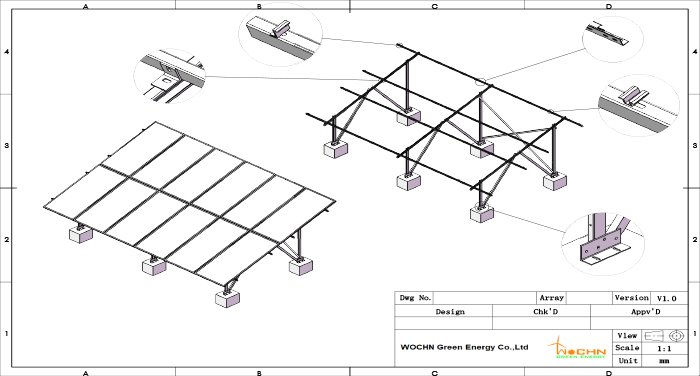

WOCHN do customized support, including:Customized technical drawing,customized force loading report and customized length production.Just tell us below, we will do the OEM service for you:

Unit array or layout drawing

Solar modules specification

Minimum height required

Tilt angle required

Foundation type

Maximum wind speed

Maximum snow load

Fast delivery for MW+ projects

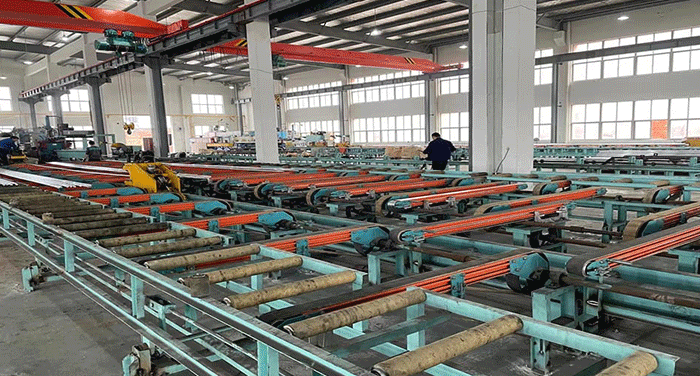

Auto-drilling machine to ensure fast cutting and drilling

Professional assemble team and package team

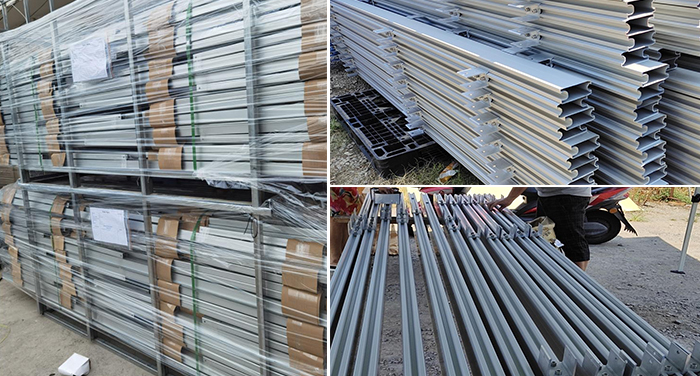

Easy-to-install and time-saving

Pre-assembled components to save onsite installation time

Low weight for transportation and assembly

Prepared directly for assembly

Components

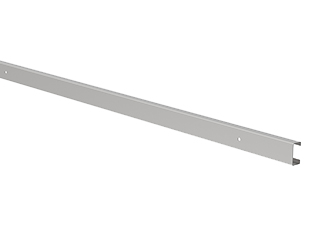

Beam

For connecting SC Leg,double suppor

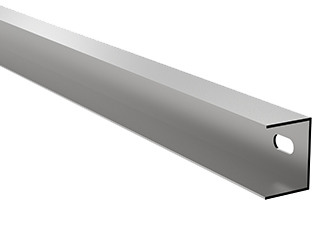

Brace

For connecting SC Leg,double support

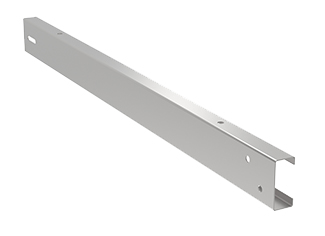

Column

For connecting SC Leg,double support

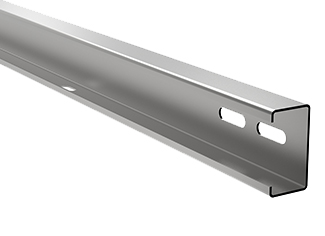

C-Purlin

For connecting SC Leg,double support

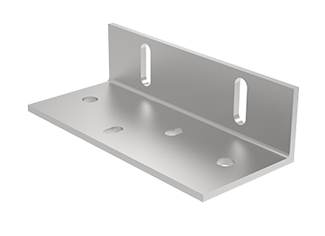

Base

For connecting SC Leg,double support

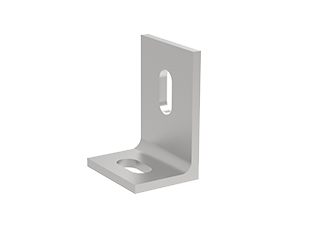

Purlin Fix Kit

For fixing C-purlinon the beam

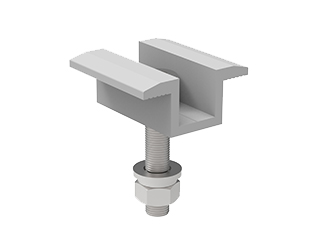

Mid-clamp

For 30-35mm thickness modules

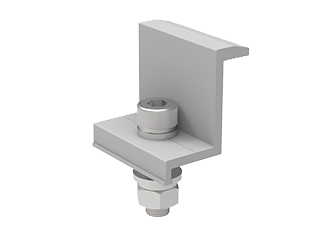

End-clamp

For 30-35mm thickness modules

Technical Data

Product name	SC Mount System
Application	Ground
Inclination	Customized
Material	Q235 Steel
Finish	HDG or Mac, average 65um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Landscape
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Downloads

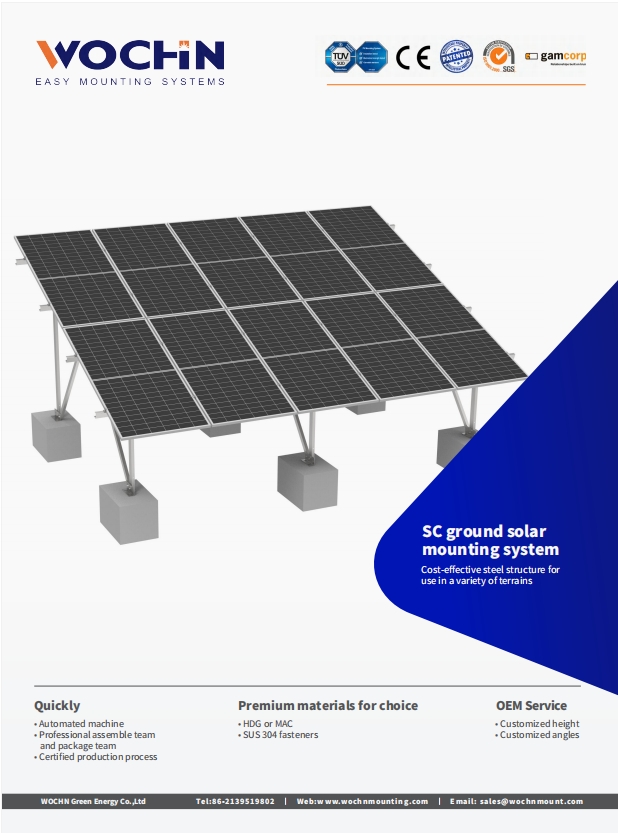

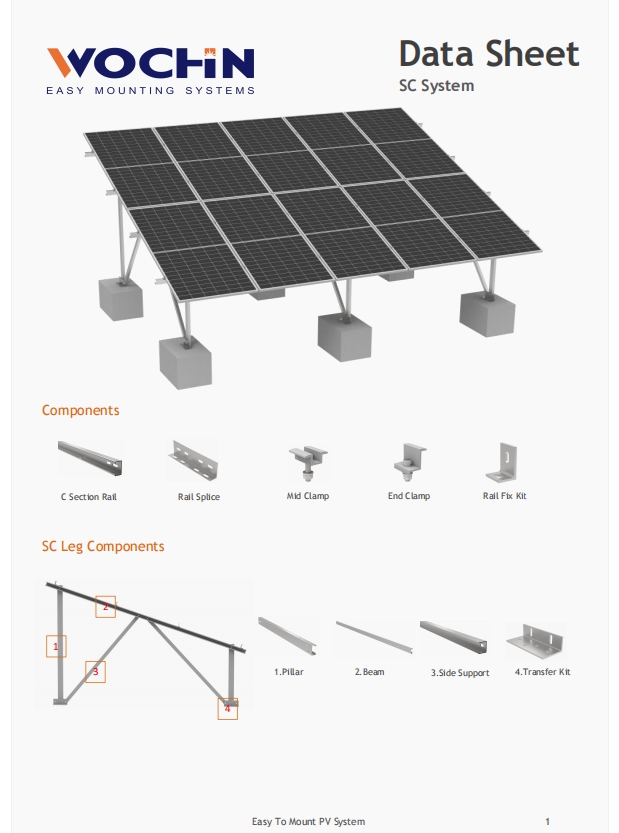

SC Ground Mount System Data Sheet
