Arch 6.0 ballast mount system is a photovoltaic mounting system used for installing solar panels on flat roofs

Features Components Technical Data Downloads

WOCHN Arch 6.0 ballast mount system is a photovoltaic mounting system used for installing solar panels on flat roofs. It is used on buildings with bitumen membrane roofs, EPDM/TPO/PVC membrane roofs and green/gravel roofs. This system with low load requirement of the rooftop, the installation of panels is facilitated.The pre-assembled base beam with rubber pad to increase the coefficient of friction and reduce ballast. Simple ballast way to make the system more strong. The system process uses 100% aluminium. This metal has many advantages including being light,strong, recyclable and highly corrosion resistance.

Features

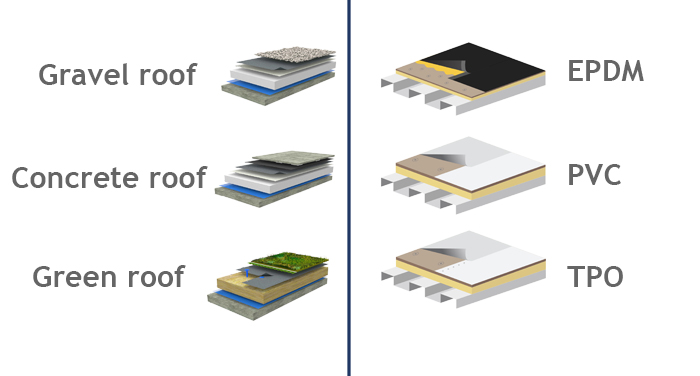

Versatile application on all flat roof coverings

Versatile application on all type flat roof coverings,like the bitumen roof, EPDM roof,TPO roof,

PVC membrane roof, foil roof, concrete roof and green or gravel flat roofs

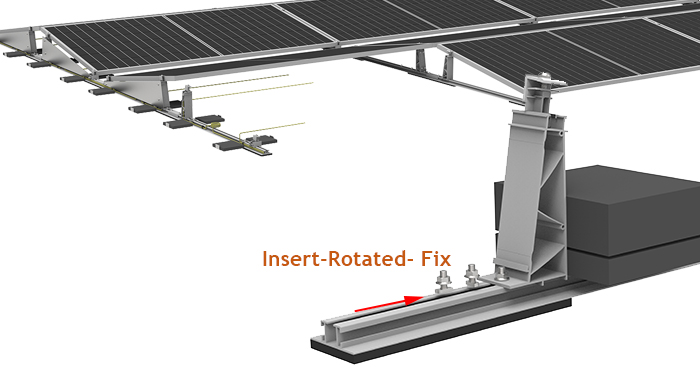

Easy and fast Installation

Use T-bolt to fix the leg to the beam

5 assembly steps for super-fast installation

Self-standing and universal mid clamp and end clamps used, increase ease of installation

Made by Anodized Aluminium 6005-T5, it's light to handle to high roof

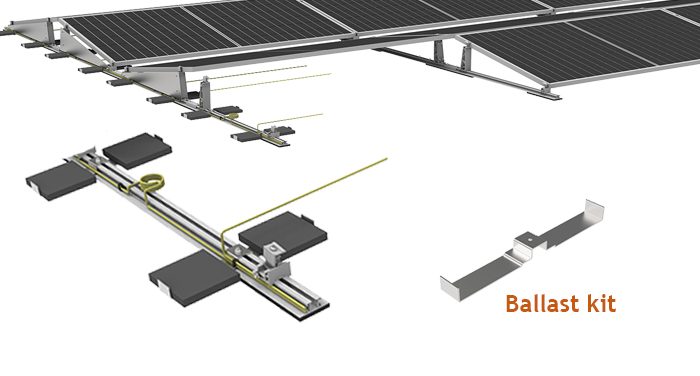

Ballast way

Simple ballast kits for quick install and low load-limit of the rooftop

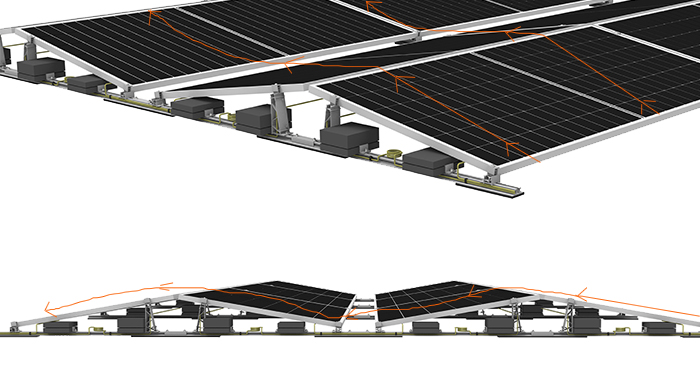

Non roof penetration and low ballast load

West to east direction meet to aerodynamic construction,the wind generates surface pressure to stably secure it on the roof, and reduce the ballast

The use of EPDM mat for high coefficients of friction reduce ballast

Non roof penetration, well protect waterproof and insulation layer

Designing load base on EN1991 and meet other internatioal standard

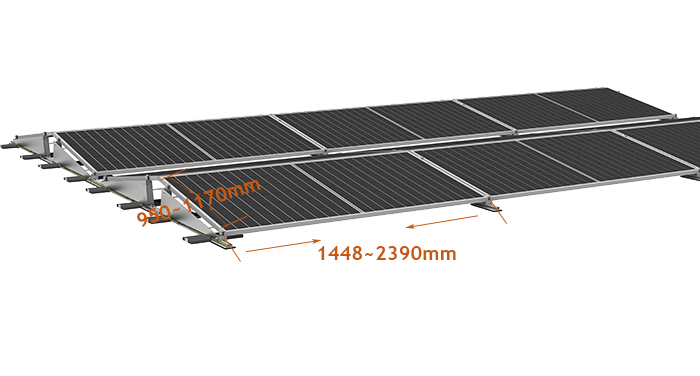

Workable for most modules

Permissible module dimensions (L×W×H): 1448-2390 × 950-1303 × 30-40mm

Clamping at the short module side permitted

Components

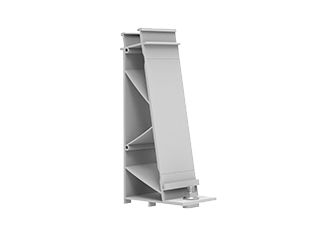

WQ-ARCH6-B-10

Arch6.0 System Back Leg for west to east, 10 deg

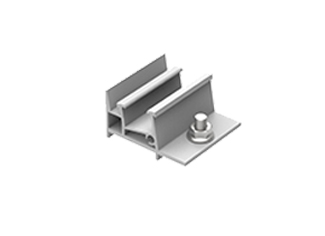

WQ-ARCH6-F

Arch6.0 System Front Leg,easy and flexible to install

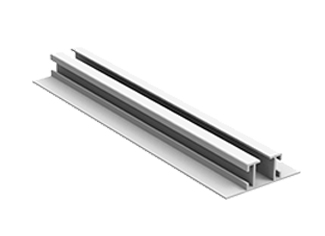

WQ-J74-BR-1450/2500

Arch6 System Base Beam 1450mm/2500mm

No assembly steps for super fast install

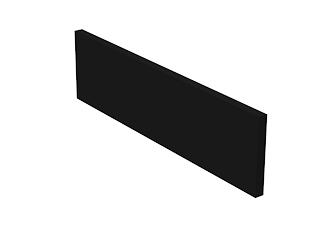

WQ-PMD-200*90*15

Rubbar Pad used to protect TPO/PVC roof

High coefficients of friction to reduce ballast

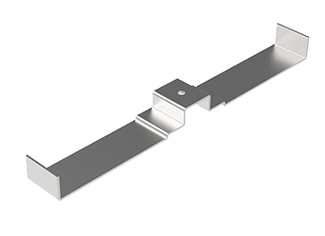

WQ-TB20-30

Ballast kits, easy and simple to install

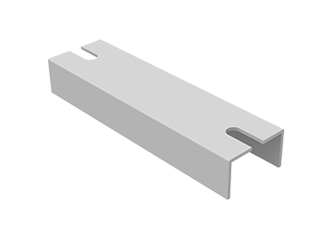

WQ-ARCH6-BRS

Arch6 System Base Beam Rail Splice

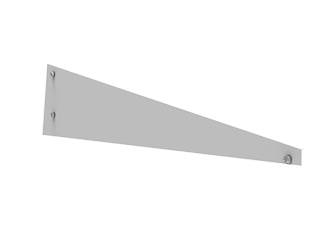

Side windshields

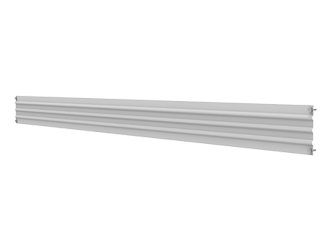

Back windshields

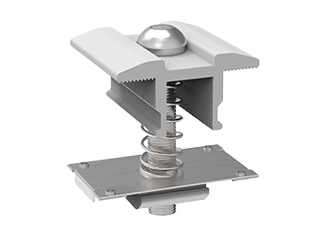

WQ-TRM-3035-S

Universal for 30-35mm thickness modules

Self-standing, easy installation

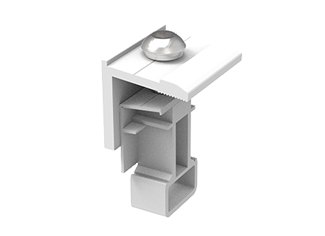

WQ-TRE-3035-S

Universal for 30-35mm thickness modules

Self-standing, easy installation

Technical Data

Product name	Arch 6.0 Mount System
Application	Flat roofs
Inclination	10 deg or customized
Material	Aluminum 6005-T5
Finish	Nature
PV module	Framed or Unframed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	West to East
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 meter
Roof height	Up to 20 meter
Design Standard	EN1991, AS1170, UL1703, JIS C 8955:2011, CE, TUV

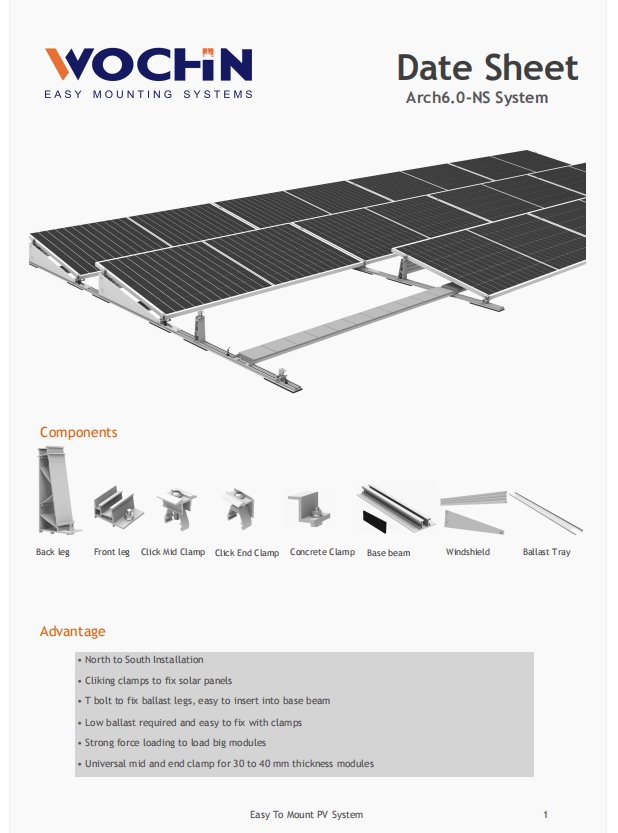

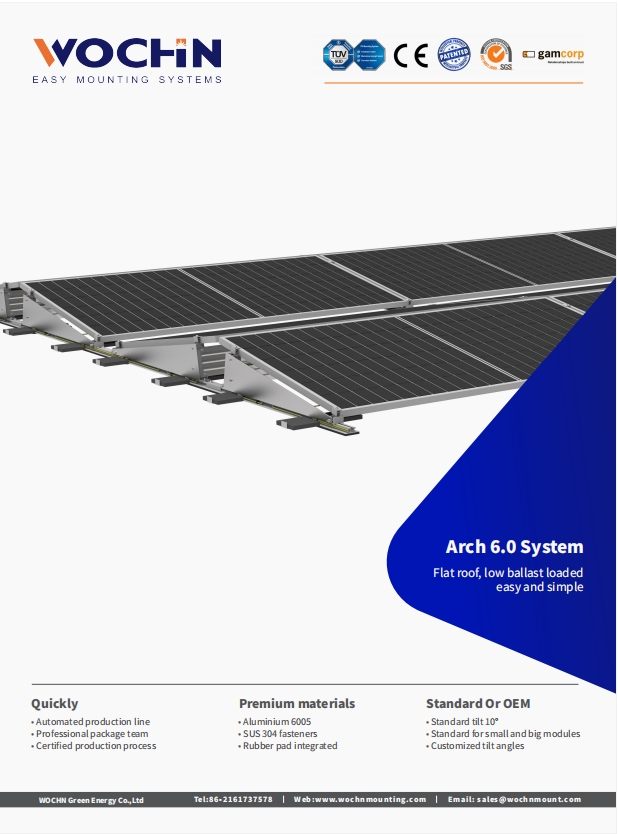

Downloads
