MINI rail is solar mountingr which can be used to metal sheet roof,corrugated and trapezoidal,rail-less, easy

Features Components Technical Data Videos Downloads Projects

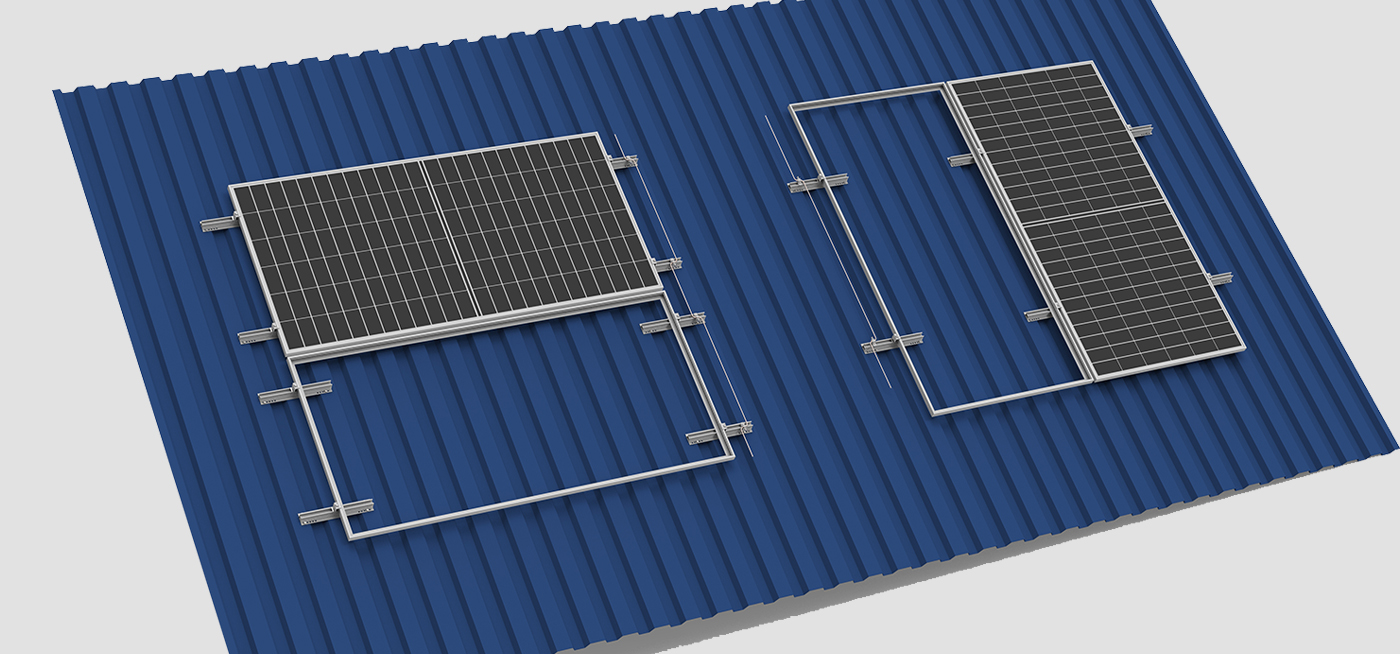

WOCHN π Mini Rail Mounting System is designed for trapezoidal and corrugated metal sheet roofs, providing a simple, flexible, and cost-effective solution for solar PV installations.With only four main components, the system enables quick and easy installation and supports both portrait and landscape module orientations. EPDM sealing mats provide reliable waterproofing and help protect the roof from water penetration.Available in 25 mm, 40 mm, and 60 mm heights, the system offers flexible options for different roof conditions and installation requirements.

Features

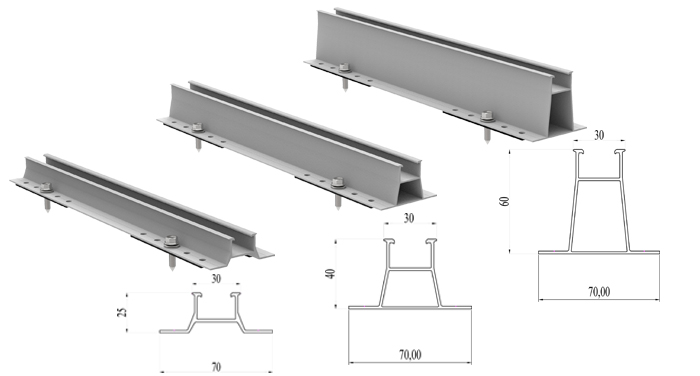

High flexibility

25/40/60mm height

Optional height to guarantee a sufficient distance from the roof covering for optimal rear ventilation and use in roofs with different temperatures condition

Simple and versatile PV mounting system

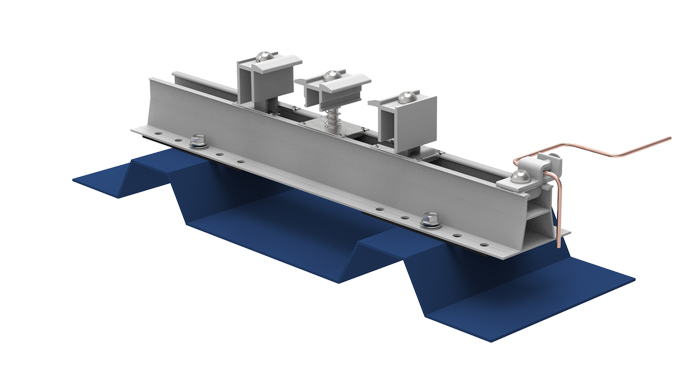

Quick Install with less material

Only 4 components required

Faster to handle short Mini Rail System compared with long Rail System

EU and UL standared self-tapping screws used, no pre-drilling and strong loading ability

Self-adhesive EPDM mat pasted and self-tapping screws with sealing washers , double protection for weatherproof, no addition glue needed

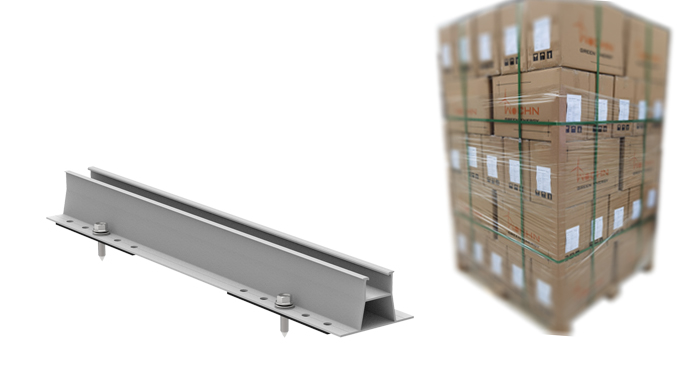

Easy Handle

Easy to transport and handle to roof top

Easy to make fast installation

Easy to make stock to distribute

Easy to save logical cost, installation cost,labor cost

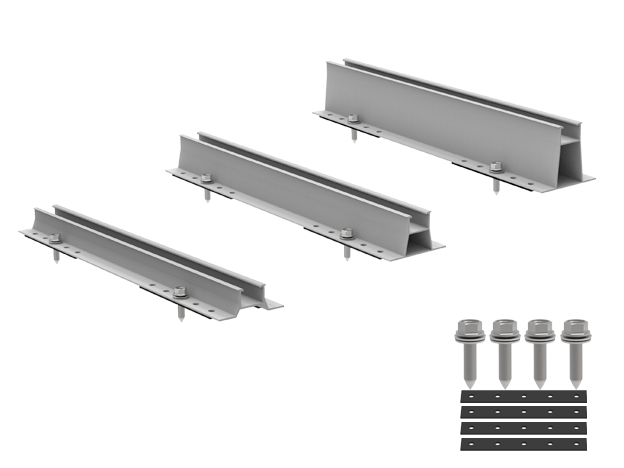

Components

Part Name	Quantity	Specification	Material
π Mini rail	1	H=25/40/60mm, L=400mm	Anodized Aluminium 6005-T5
Self driling screw	4	M5.5*30mm	SUS410
EPDM pad	4	20*80mm	EPDM

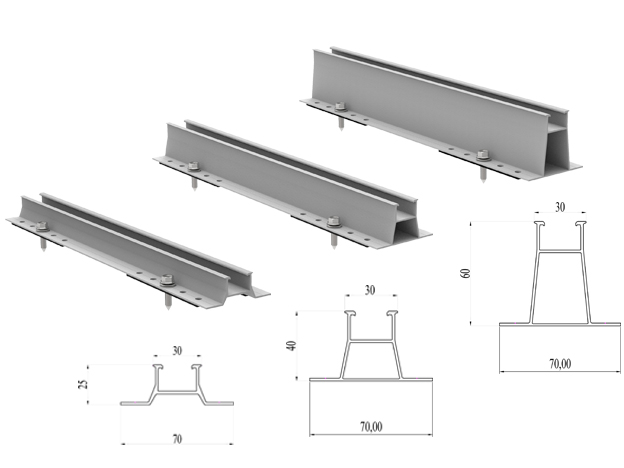

Technical Data

unit:mm

Product name	π MiniRail system
Application	Trapezoidal sheet metal, sandwich panels, corrugated sheet roofs
Inclination	Any roof inclination
Material	Aluminium 6005-T5
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Video

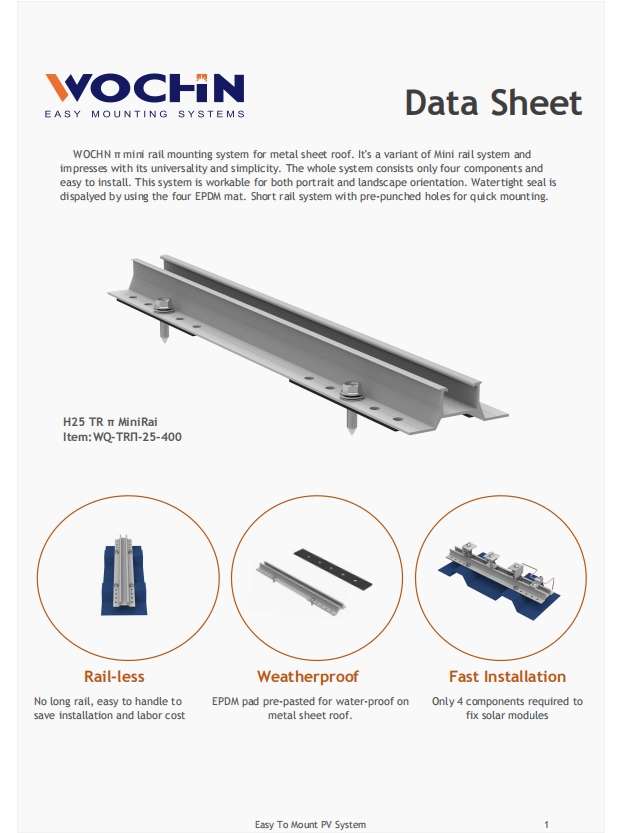

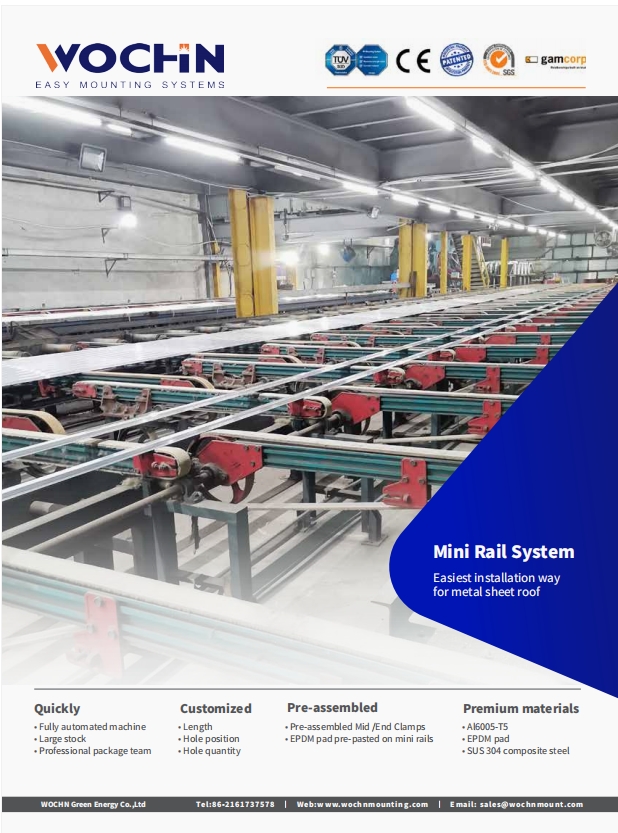

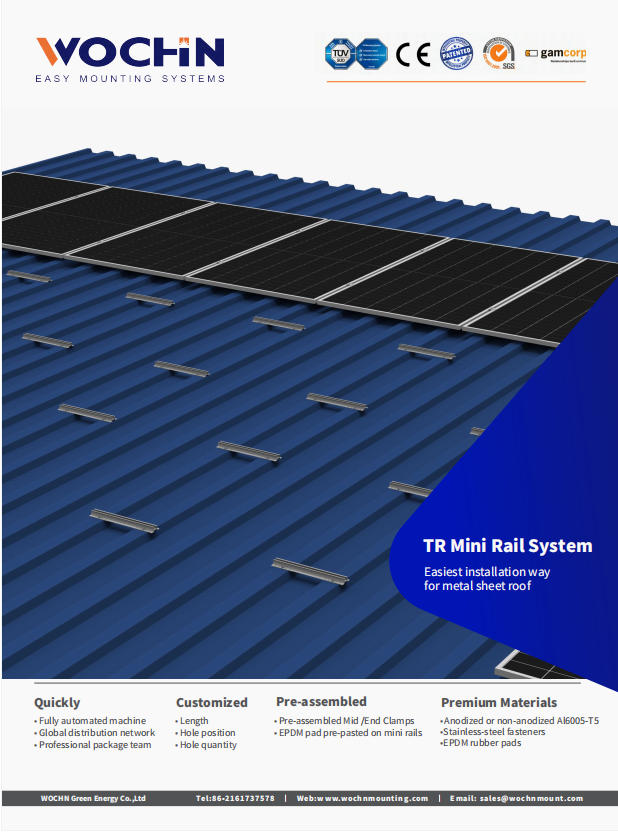

Downloads

Projects

Tags: Metal Sheet Roof EPDM Design trapezoidal sheet metal roof pv mini rail pv short rail short mounting rail rail-less solution
