    ECO Pro W/E Solar Mounting System

Features Components

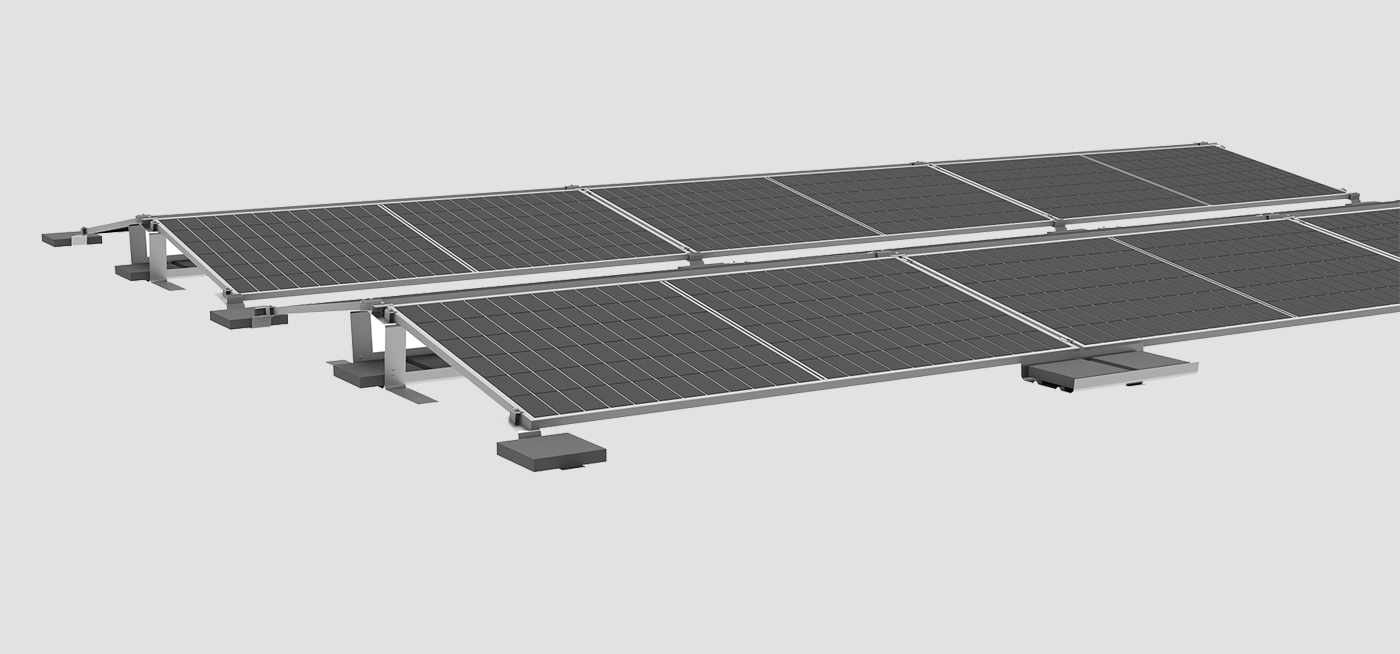

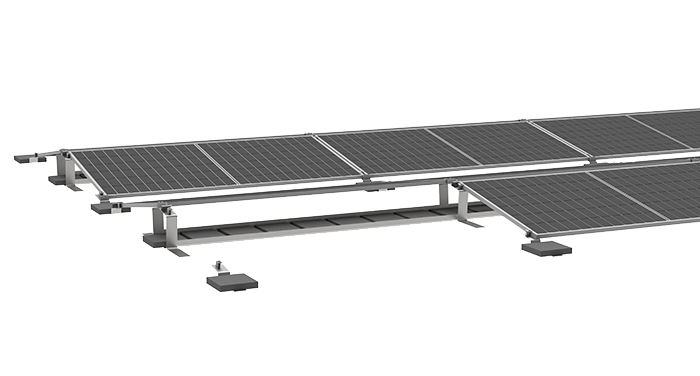

    The WOCHN ECO Pro W/E ballasted Mounting System is a system for installing photovoltaic panels on flat roofs, facing either west or east. It is suitable for roofs with asphalt, EPDM/TPO/PVC, and green/gravel roofs. The system requires minimal ballast, and requires no drilling, fully protecting the whole roof. Because installation requires a small number of components, installers can save time and reduce labor costs. The legs are constructed of MAC steel, a metal with numerous advantages, including high durability, strength, and stability.


Features

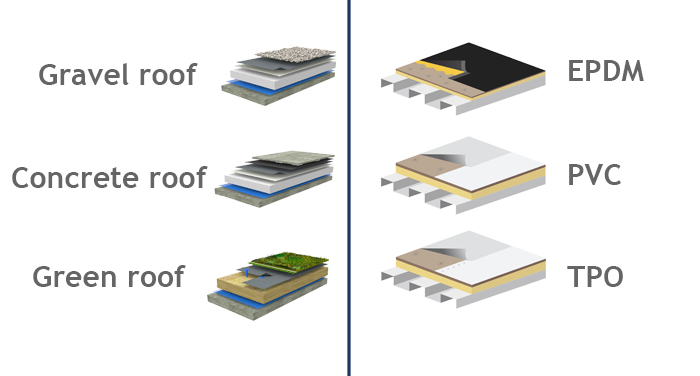

Flexible Application

Flexible Application

Versatile application on the flat roof,which made of bitumen, EPDM,TPO,PVC membrane roofs and green or gravel flat roofs

The best DIY idea for flat roof solar installation

Support customized angle to absorb more energy

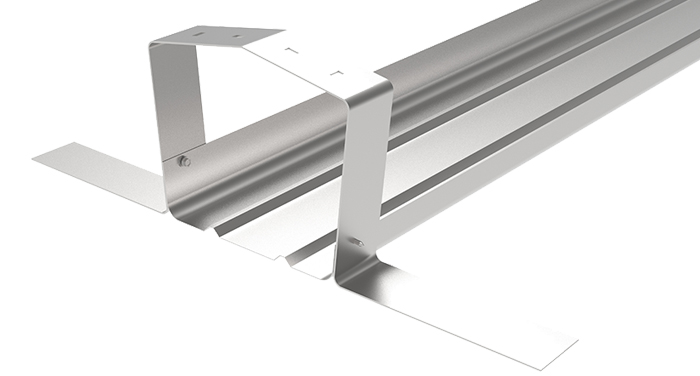

Stronger

Stronger

Made by MAC steel, heavy self-weight and low ballast required, very stable

Front and back rows are designed as an integrated unit, with MAC steel, providing strong compressive resistance.

No drilling required, which 100% protects the roof waterproofing layer

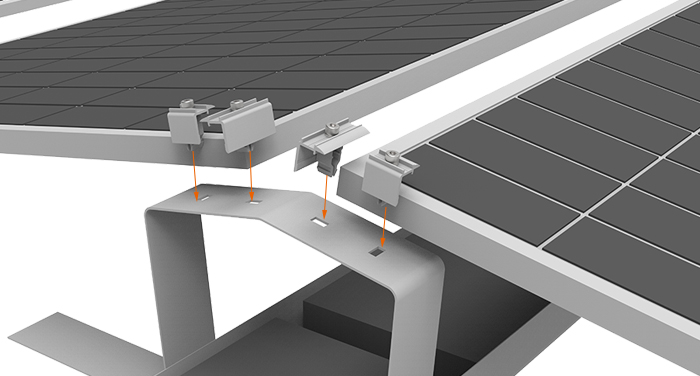

Easy and fastest Installation

Easy and fastest Installation

Short assembly time due to few components

Just click the clamp to fix panels

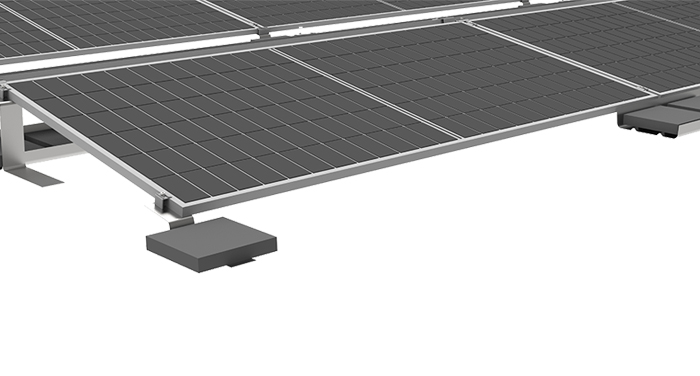

Friendly and saving

Friendly and saving

Less 45% cost compared with traditional aluminum ballast

Good module rear ventilation

Components

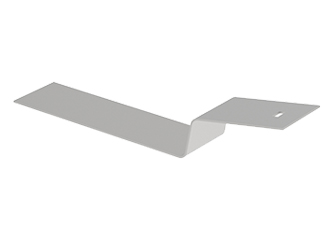

Front Leg

Front Leg

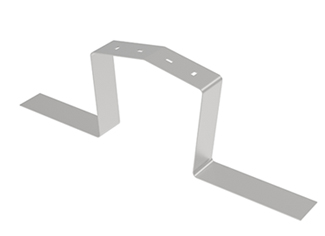

Back Leg

Back Leg

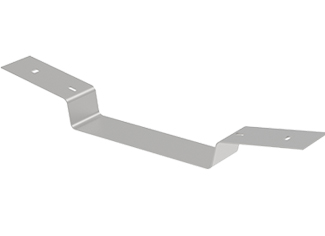

Connector Leg

Connector Leg

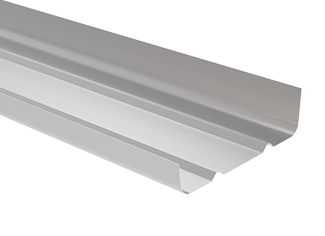

Ballast tray 1

Ballast tray 1

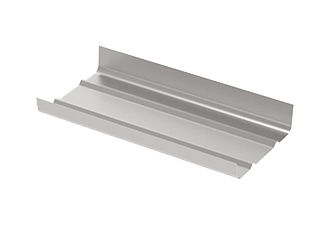

Ballast tray 2

Ballast tray 2

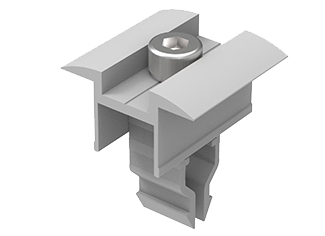

Mid clamp

Mid clamp

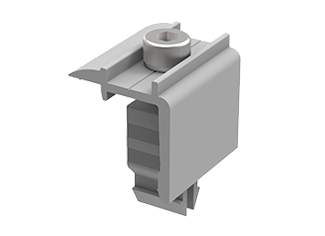

End clamp

End clamp
