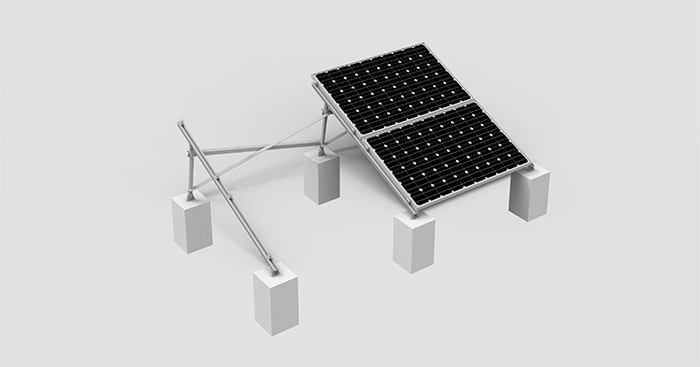

ATV solar mounting system is triangle system for landscape solar installation on flat roof.Ground or concrete

Features Components Technical Data Videos Downloads Projects

WOCHN ATV solar mounting system is triangle system for landscape solar installation on flat roof. It is easy and fast installation of PV panels on flat roofs and surface. The triangular design provides a stable, reliable and strong base for the system. It's versatile of the application which ballasted with concrete foundation or directly connected with flat concrete roofs. This system supports a wide range for adjustable angle through to adjust the distance between front base and back base of the leg to achieve the tilt adjustable. The adjustable angle range is 10-60° available. This system is rail-less and easy to place solar modules on the ATV leg beam's two side. The longer module arrays placed, the cost more cost -effective. And also resisting the extreme wind load and snow forces experienced over a rooftop lifespan. Every component in the system is made with aluminium and stainless steel to ensure complete corrosion resistance and longer lifespan.

Features

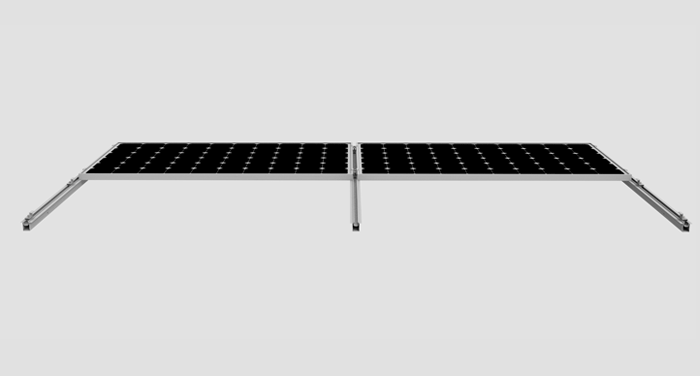

Rail-less & Co-beam

WOCHN ATV Triangular Mount System fit multitude of different flat concrete roof on concrete foundations. The rail less and the co-beam design make the ATV solar mounting solution as a very cost-effective solar mounting solution for flat roof solar installation

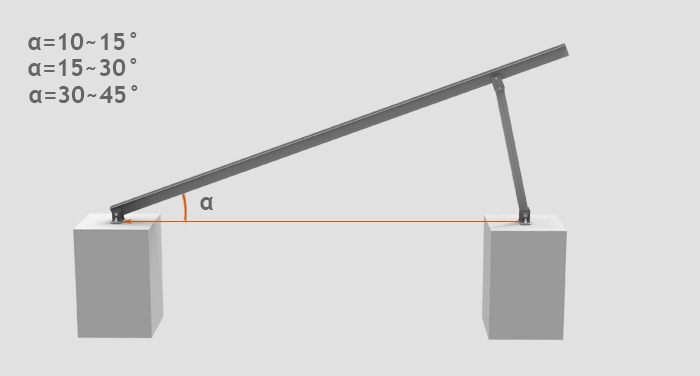

Inclination Angle Adjustable

Easy to adjust the distance between front base and back base to reach the tilt adjustable

/ 10-15 degree

/15-30 degree

/ 30-45 degree

Custom Inclination angle available upon request

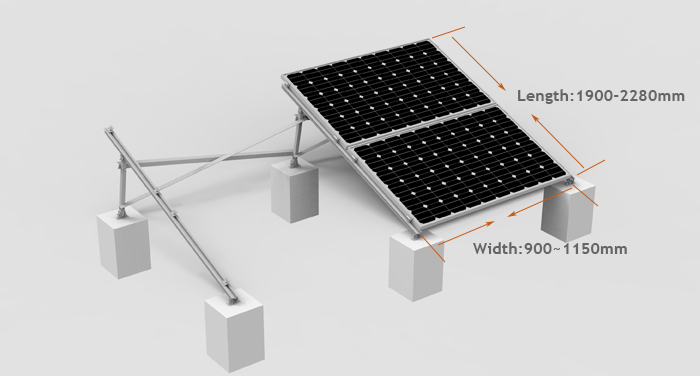

Landscape Installation

Full consider the the solar module size to make 2 panels landscape installation

Make sure the max yield of system, any lengths of connector can be made for different layouts

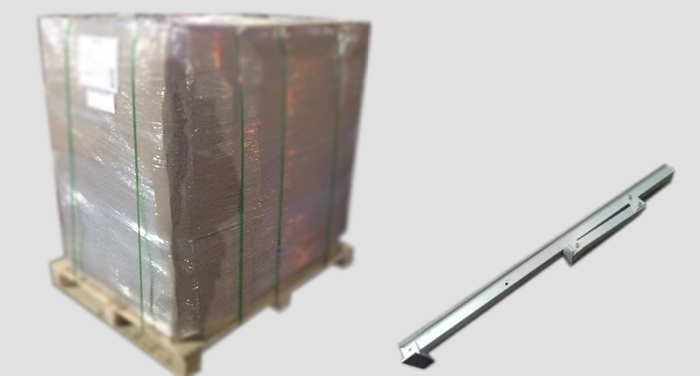

Highly Pre-assembled

The triangular legs are fully-preassembled, and packed on pallets, easy to pick up it

Easy transporation and fast site installation with less labor cost

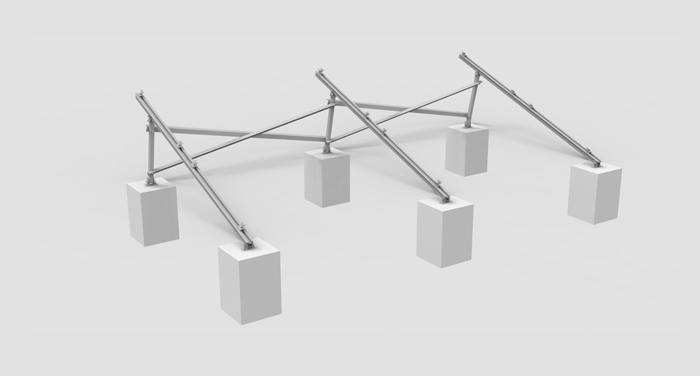

Customized Workable

It's flexible customized the Triangular Mount System upon the inclination and the solar module size

Except 2 panles landscape installation, the customized 3 panles /4 panles landscpae also workable

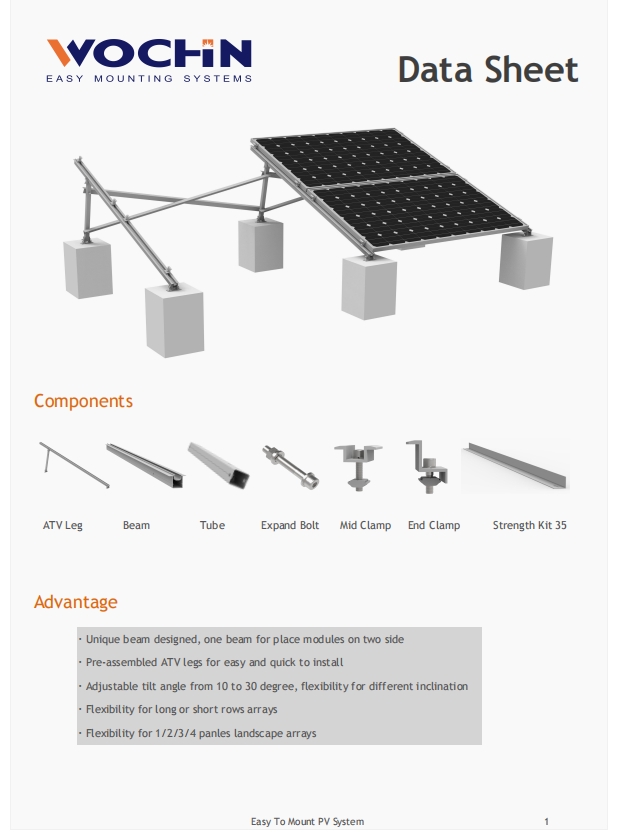

Components

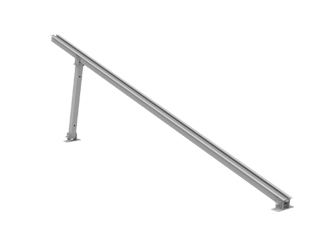

ATV Leg

Easy to adjust the tilt angle: 10-15,15-30,30-45 degree

Rail less due to co-beam design

Beam

Beam for ATV Leg

Co-beam to achieve rail free

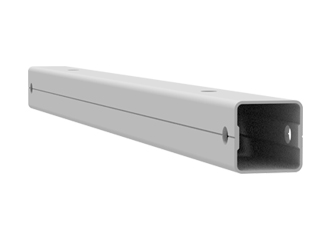

Tube

Support the ATV leg

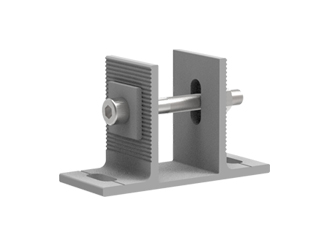

Base

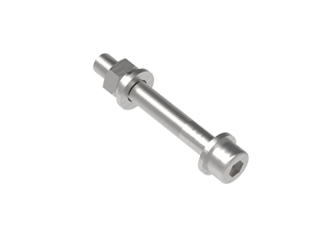

Expand Bolt

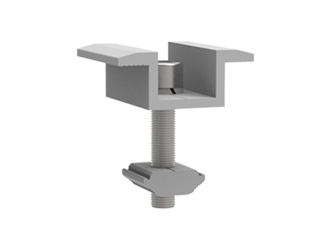

Mid Clamp

Universal for fix module of thickness 30-40mm

Self-standing,easy installation

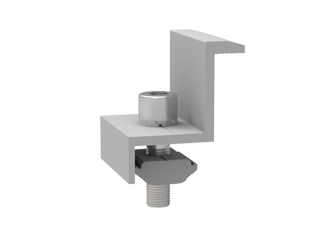

End Clamp

Universal for fix module of thickness 30-40mm

Self-standing,easy installation

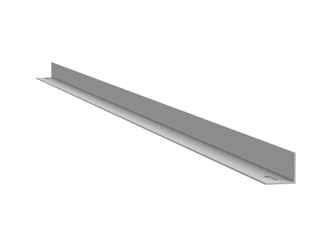

Strength Kit 35

To make the system more strong

Technical Data

Product name	ATV Mount System
Application	Flat concrete roof and small ground
Inclination	Standared or customized
Material	Aluminum 6005 T5
Finish	Anodized clear, average 12um
PV module	Framed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
