The WOCHN Standing Seam Clamp 31# Solar Mounting is a track-mounted clamp for mounting solar on standing seam

Features Components

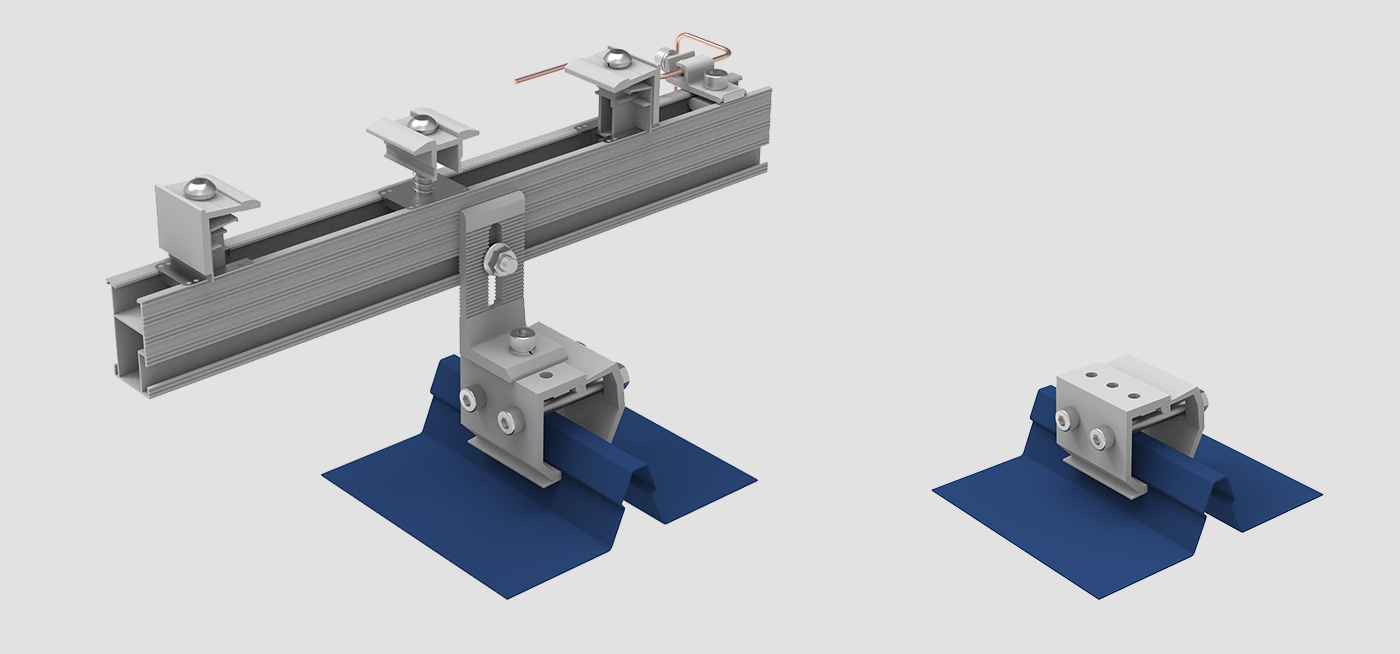

The WOCHN Standing Seam Clamp 31# Solar Mounting is a track-mounted clamp for mounting solar on standing seam metal roofs with Lysaght Klip-lok roofs, suitable for roofs such as Klip-Lok 406, Klip-Lok 700, etc. No damage equals no penetration, which means the roof is weatherproof, thus extending the life of the roof. At the same time, it also ensures the permanence and durability of the installation on the roof. It is compatible with the WOCHN L-Trestles system, making the system more sturdy and durable. Pre-installed fixing screws make installation super fast. Installation is very simple, just place the clamp on the seam and tighten the fixing screws to the specified tension for maximum holding strength.

Features

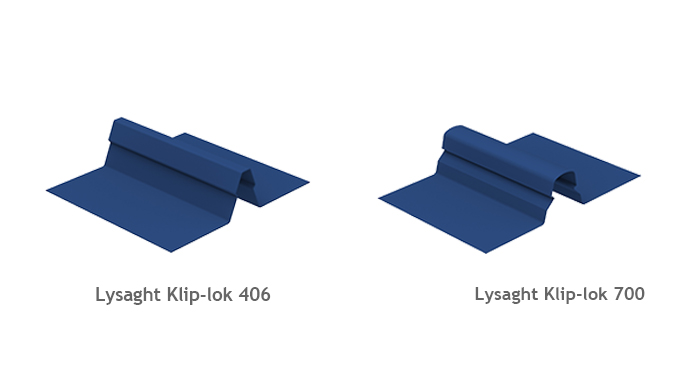

Universality

Clenergy Klip Lok Universal Clamp Interface, universal for seam metal roofs ,such as Klip‐Lok 406, Klip‐Lok 700 Classic, Klip‐Lok 700 High Strength, Speed Deck Ultra, Kingklip 700.

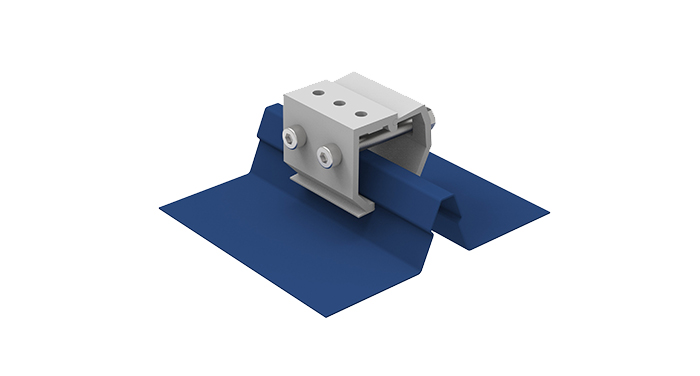

Non-penetrative, robust and waterproof

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength

No penetrative means weatherproof for the roof to ensure the rooftop longer lifespan

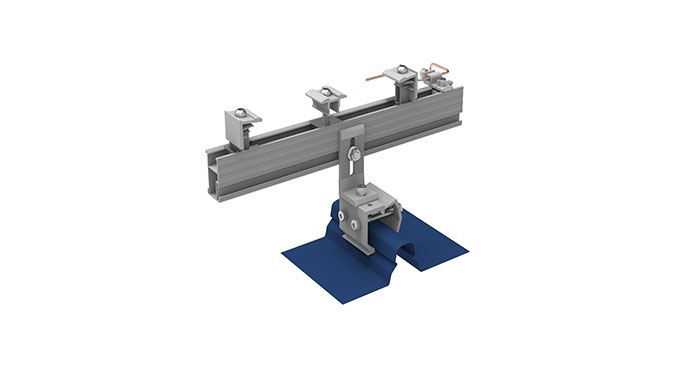

Flexibility

Easy compatible with WOCHN L feet solar mounting system to make standing seam clamp mount system more strong

Longer lifespan and reliable

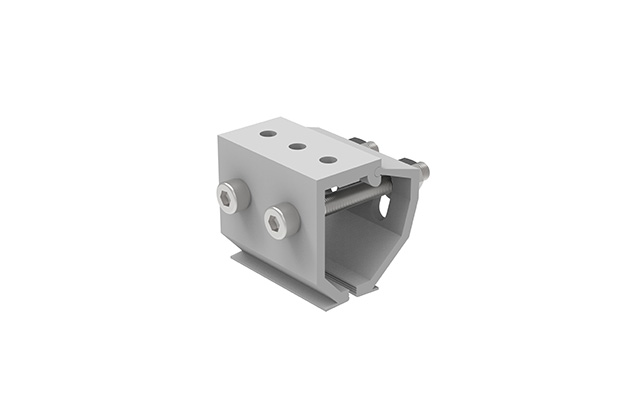

Components

Part Name	Quantity	Specification	Material
Clamp	1	55.5*60mmm	Anodized Aluminium 6005-T5
Side screw	2	M8*80mm	SUS304
