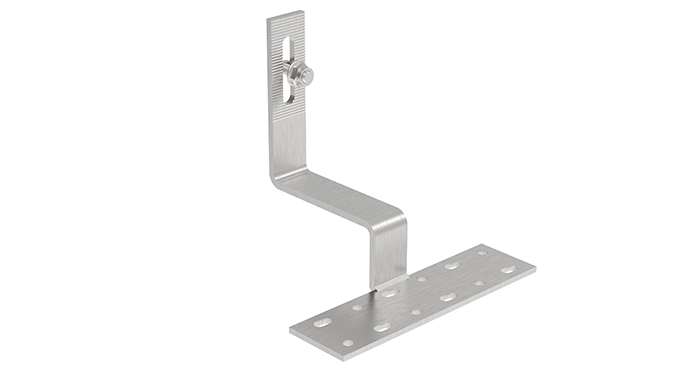

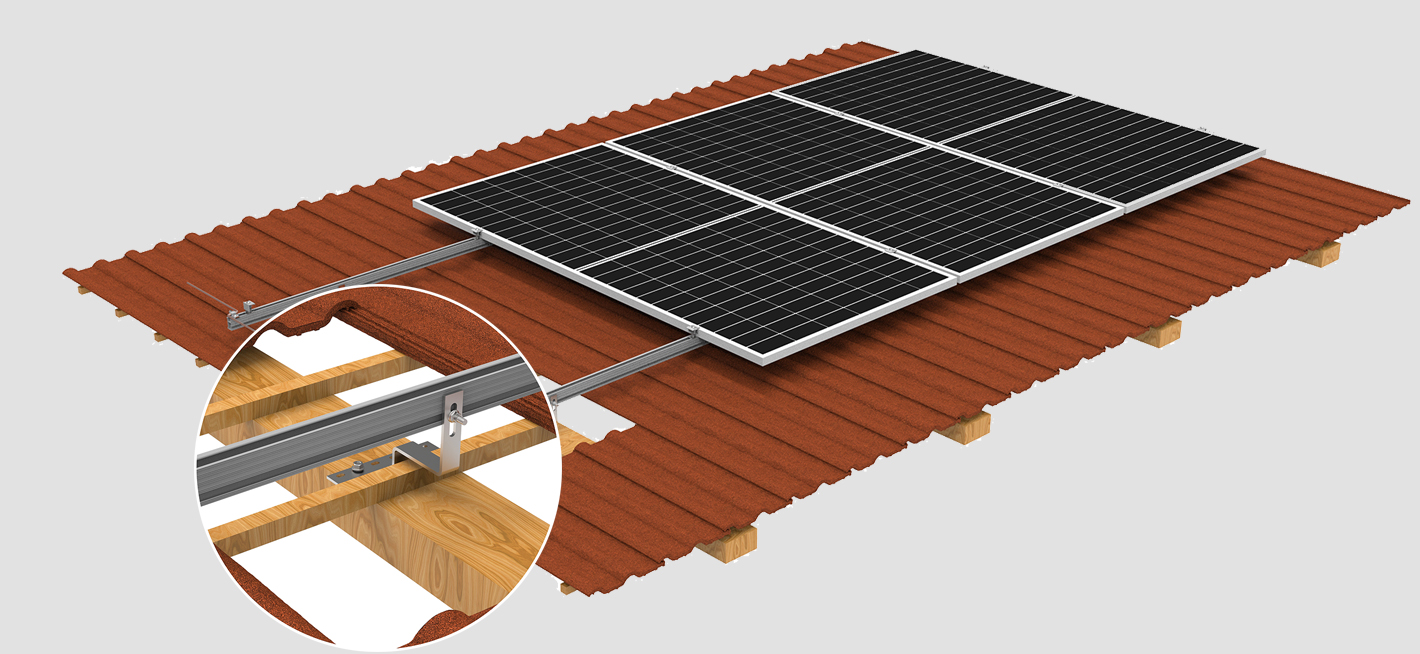

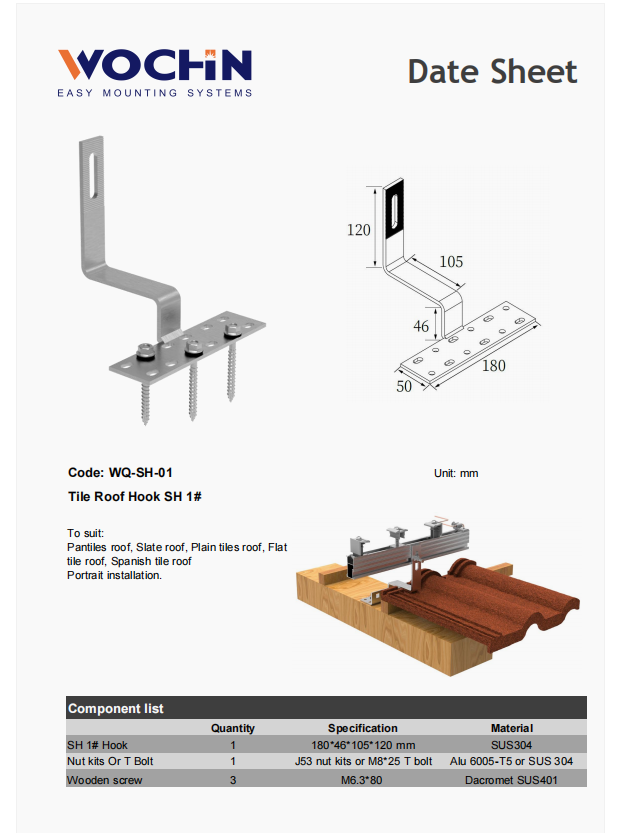

WOCHN 1# Tile roof hook is for solar installation on residential and commercial tiled roofs. It’s suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook is made by SS304/430 highly anti-rust and big wind and snow load ability. Two fix in rail way to choose: T bolt or side rail fix adapter. It's simple design to achieve quickest installation. Sutiable for portrait installation.
Features

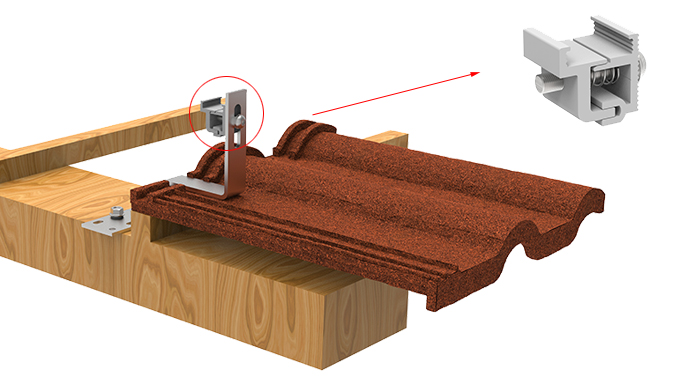

Fast Side Support
Secure the system by tightening the side-rail adapter screws from the side.
For portrait installation

T Bolt Way
Use T bolt to fix in Rail,just rotated and tighten the T bolt
For portrait installation

Universality
Simple installation with slotted connections, adjustable hook locations
For any tile roof to choose

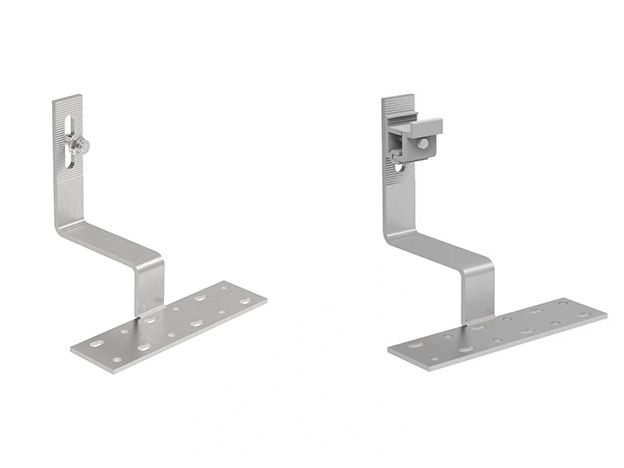

Components
| Part Name | Quantity | Specification | Material |
| 1# hook | 1 | 180*46*105*120 mm | Stainless steel SUS304/430 |
| Self driling screw | 3 | M6.3*80mm | Stainless steel |
| Common Rail Fix Adapter(Option) | 1 | / | Anodized Aluminium 6005-T5 |
| Rotate Rail Fix Adapter(Option) | 1 | / | Anodized Aluminium 6005-T5 |
Technical Data
unit:mm
| Product name | Tile roof hook 1#Mounting System |
| Application | Tile roof |
| Inclination | Any roof inclination |
| Material | Stainless SUS304/430 |
| Finish | Nature |
| PV module | Framed or Unfreamed |
| Module size | Small and Big modules |
| Module orientation | Portrait |
| Design wind loading | Up to 60m/s |
| Design snow loading | Up to 1 metre |
| Roof height | Up to 20 metre |
| Design Standard | EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV |
