Manufacture IR MiniRail System Solar Mounting

Features Components Technical Data

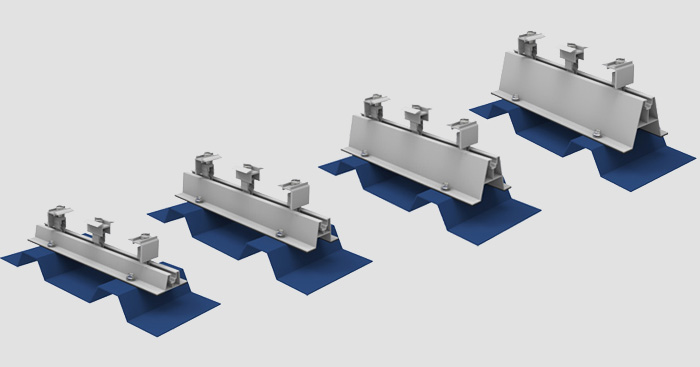

The WOCHN IR mini rail system is specially developed for trapezoidal and corrugated metal roofs. It impresses with its universality and simplicity, using only four components. This system is workable for both portrait and landscape orientation. Watertight seal is dispalyed by using the four EPDM mat. . Newly upgraded with an inner-clamp design for mid/end clamps and 4 adjustable height options, it ensures a faster, more flexible installation.

Features

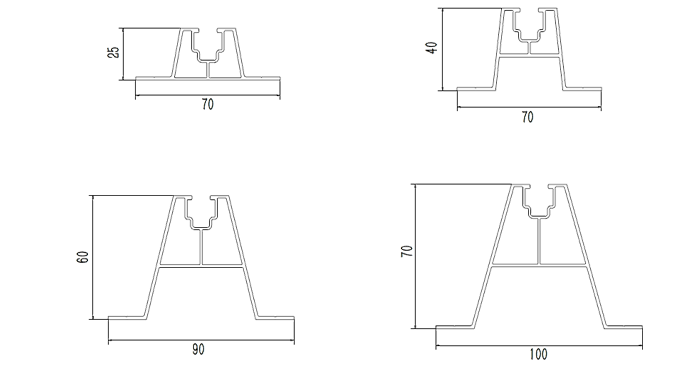

High flexibility

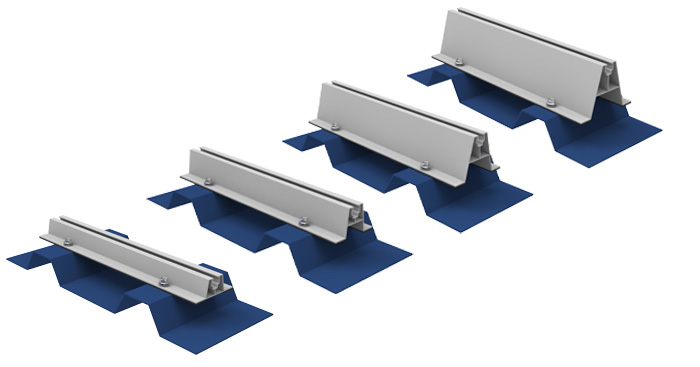

25/40/60/70 mm height

Optional height to guarantee a sufficient distance from the roof covering for optimal rear ventilation and use in roofs with different temperatures condition

Simple and versatile PV mounting system

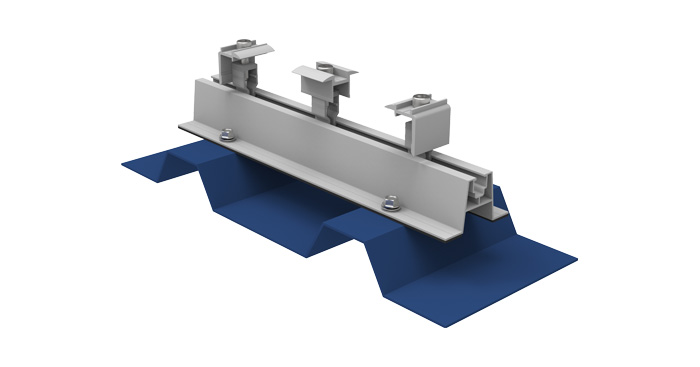

Quick Install with less material

Only 4 components required

Click installation way

Self-adhesive EPDM mat pasted and self-tapping screws with sealing washers , double protection for weatherproof, no addition glue needed

Easy Handle

Easy to transport and handle to roof top

Easy to make fast installation

Easy to make stock to distribute

Easy to save logical cost, installation cost,labor cost

Components

Part Name	Quantity	Specification	Material
π Mini rail	1	H=25/40/60/70mm, L=330mm	Anodized Aluminium 6005-T5
Self driling screw	4	M5.5*30mm	SUS410
EPDM pad	2	330*17.6mm	EPDM

Technical Data

unit:mm

Product name	IR MiniRail system
Application	Trapezoidal sheet metal, sandwich panels, corrugated sheet roofs
Inclination	Any roof inclination
Material	Aluminium 6005-T5
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
