Jul. 04, 2025
As urbanization gradually expands, roof space in built areas is limited, and the diverse design of buildings, solar panel installation is no longer limited to rooftops.WOCHN wall solar mount system is an efficient and beautiful installation solution for concrete, trapezoidal and corrugated mental sheet wall.
Two choice for rail, there is always one suitable for you
The system offers two types of mini rails: U and Π, in long and short specifications.

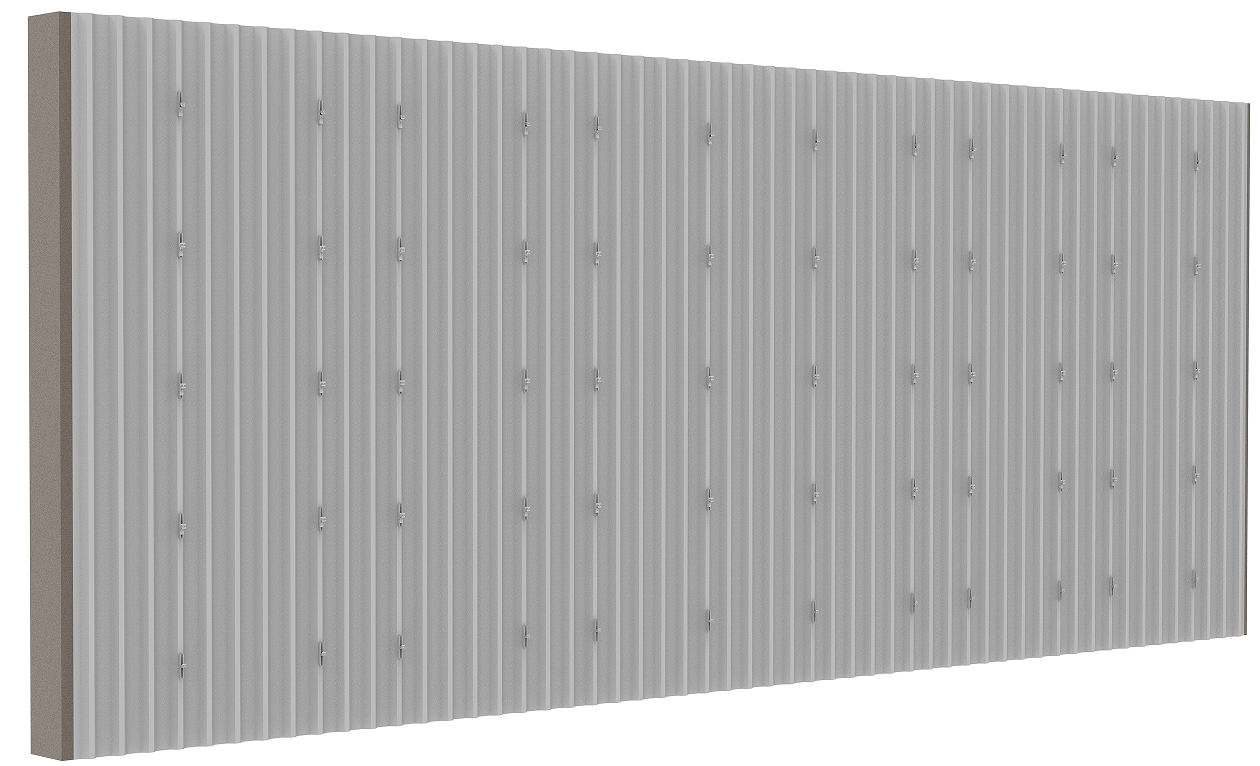

Short rail (200mm): Designed for mental sheet roofs with large ups and downs (such as T-shaped tiles). At the same time, please note that the Π mini rail requires the effective width of the mental sheet roof to be ≥100mm.

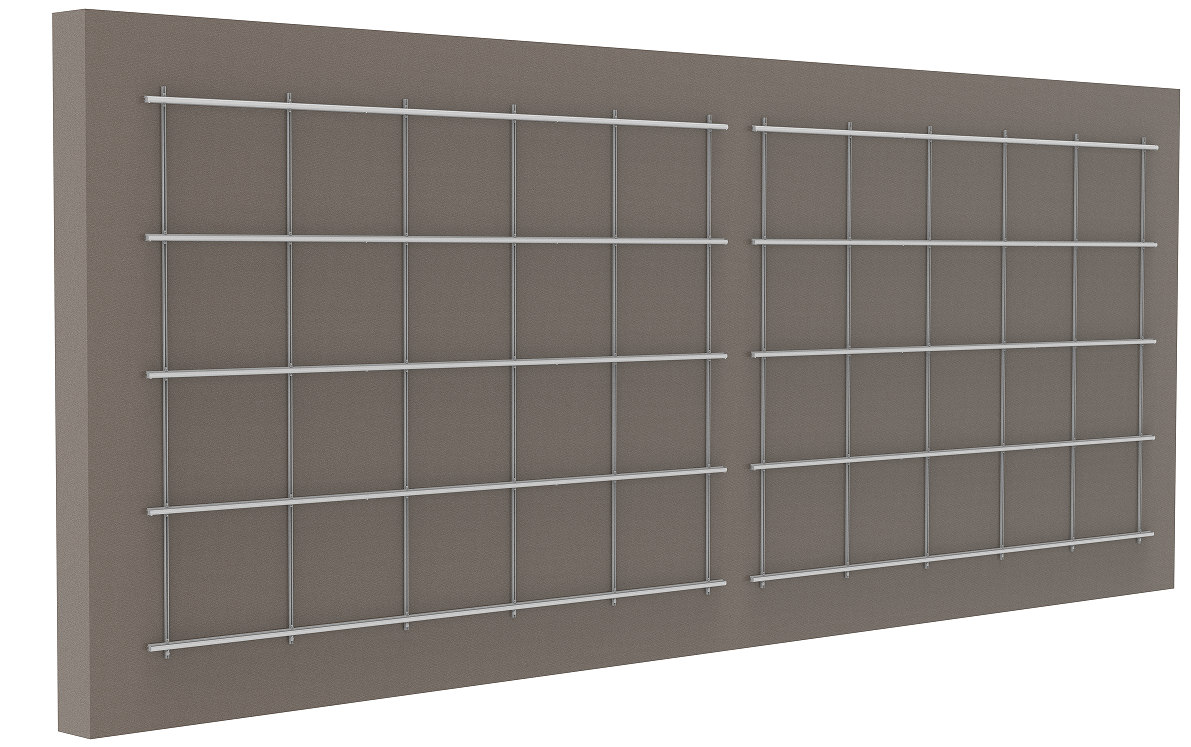

Long rail (customized length): preferably suitable for flat cement walls or mental sheet roofs with gentle curvature. WOCHN supports flexible customization of long rail length according to project requirements.
Accessory system, 1V1 matching, stable installation

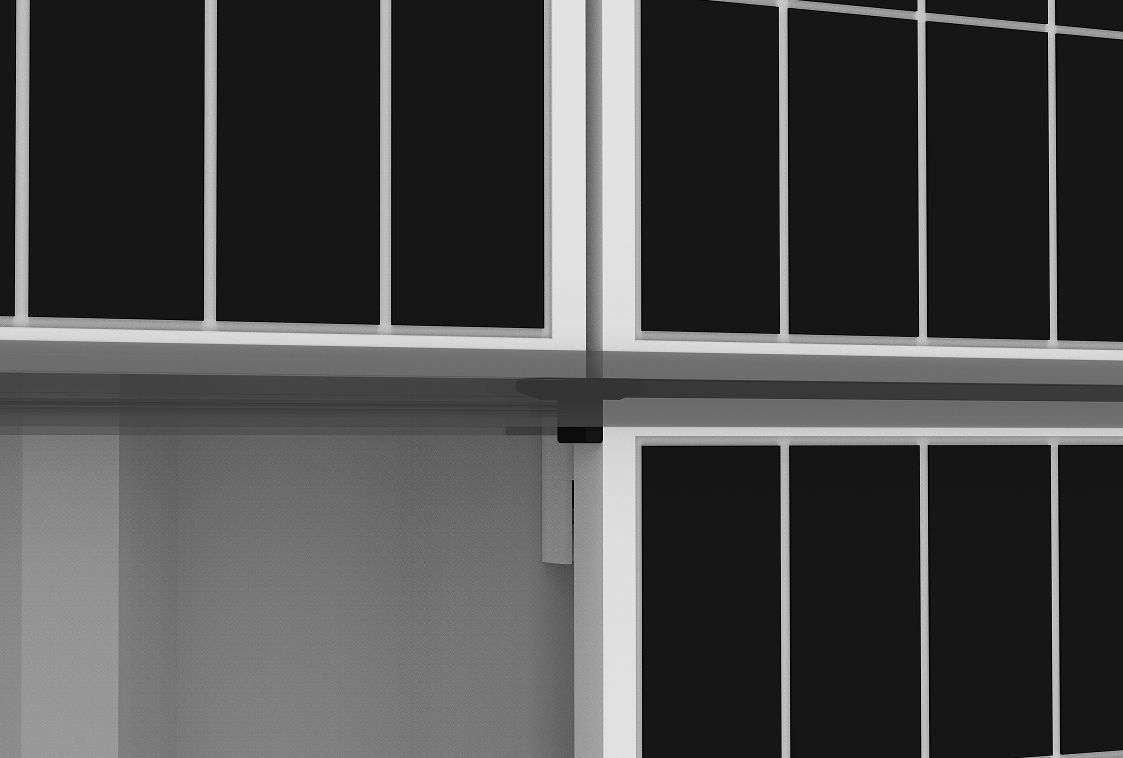

Cover rail system: Two universal mini rails make the whole system looks more beautiful after installation. It also simplifies installation without the need for mid and end clamp. Rubber Blocks are used instead of mid and end clamp, and fixed by extrusion
2. Solar fixing system: two universal mini rails, key components to ensure the stability of solar panels, and flexible use with different rail limiters

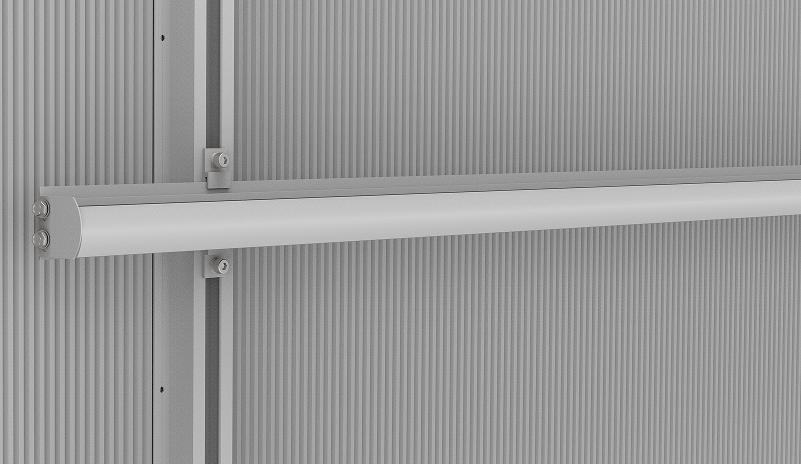

① U mini rail limiter

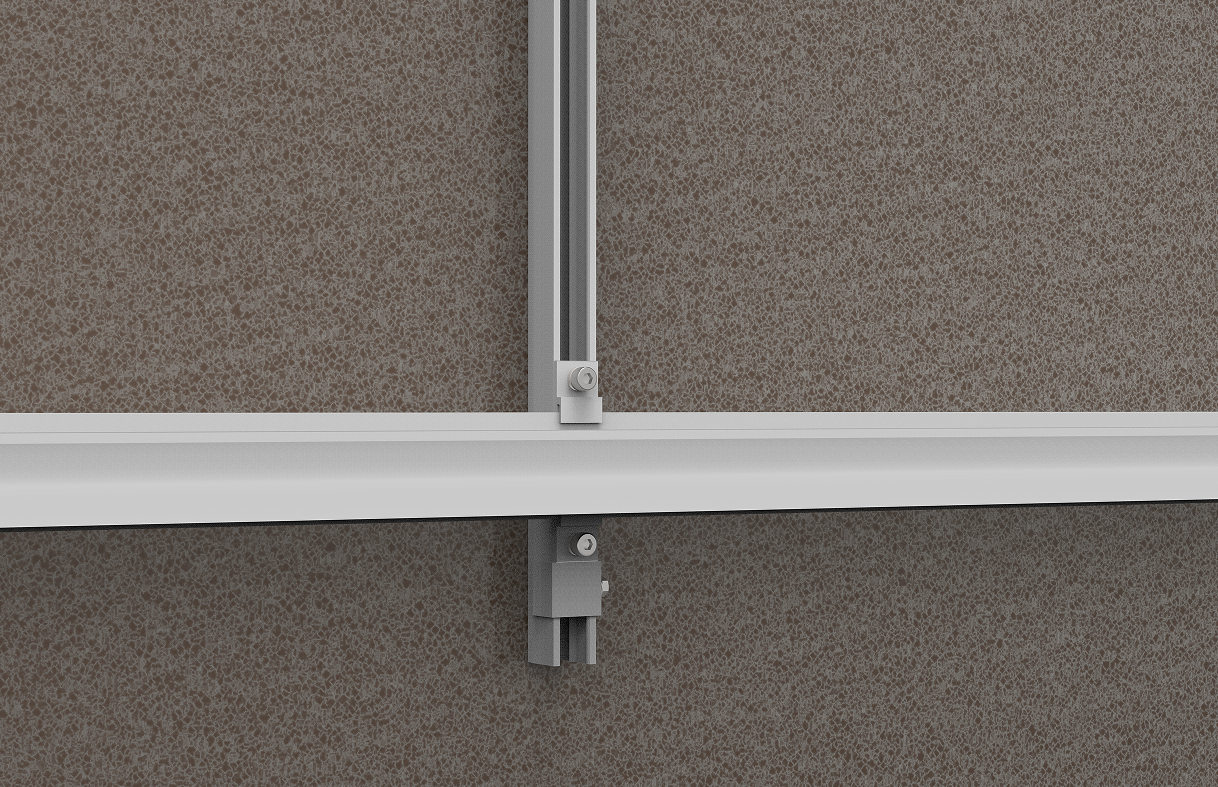

② π mini rail limiter

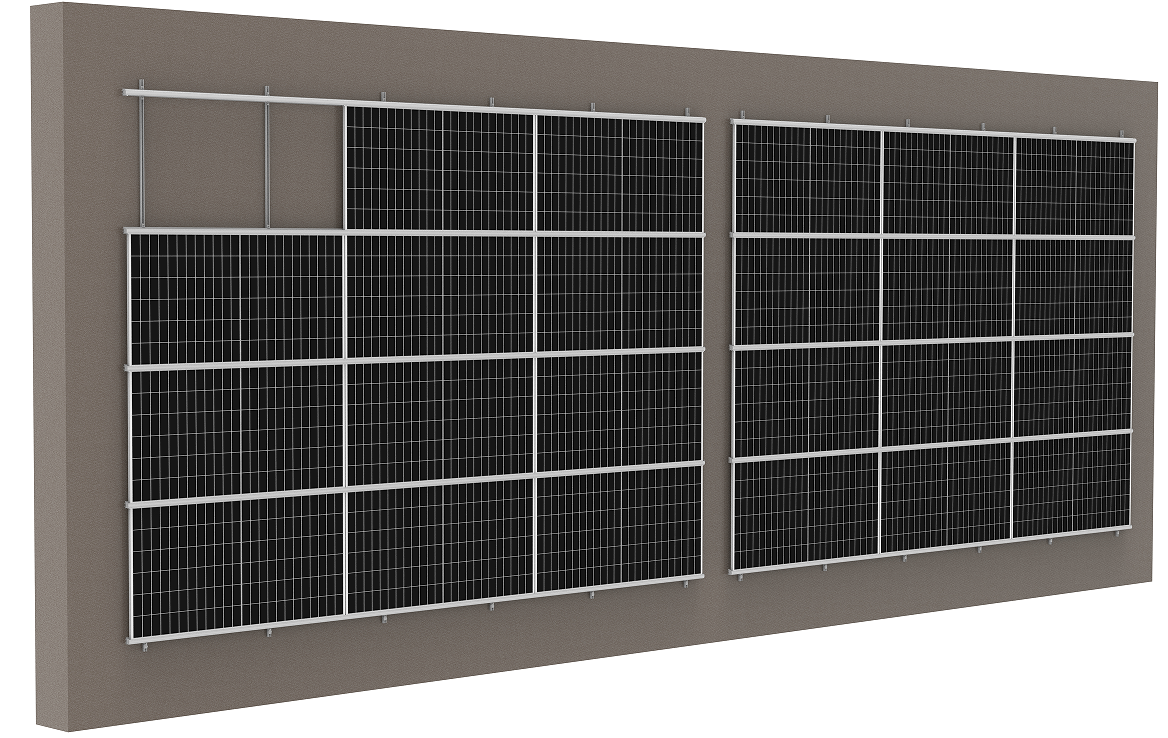

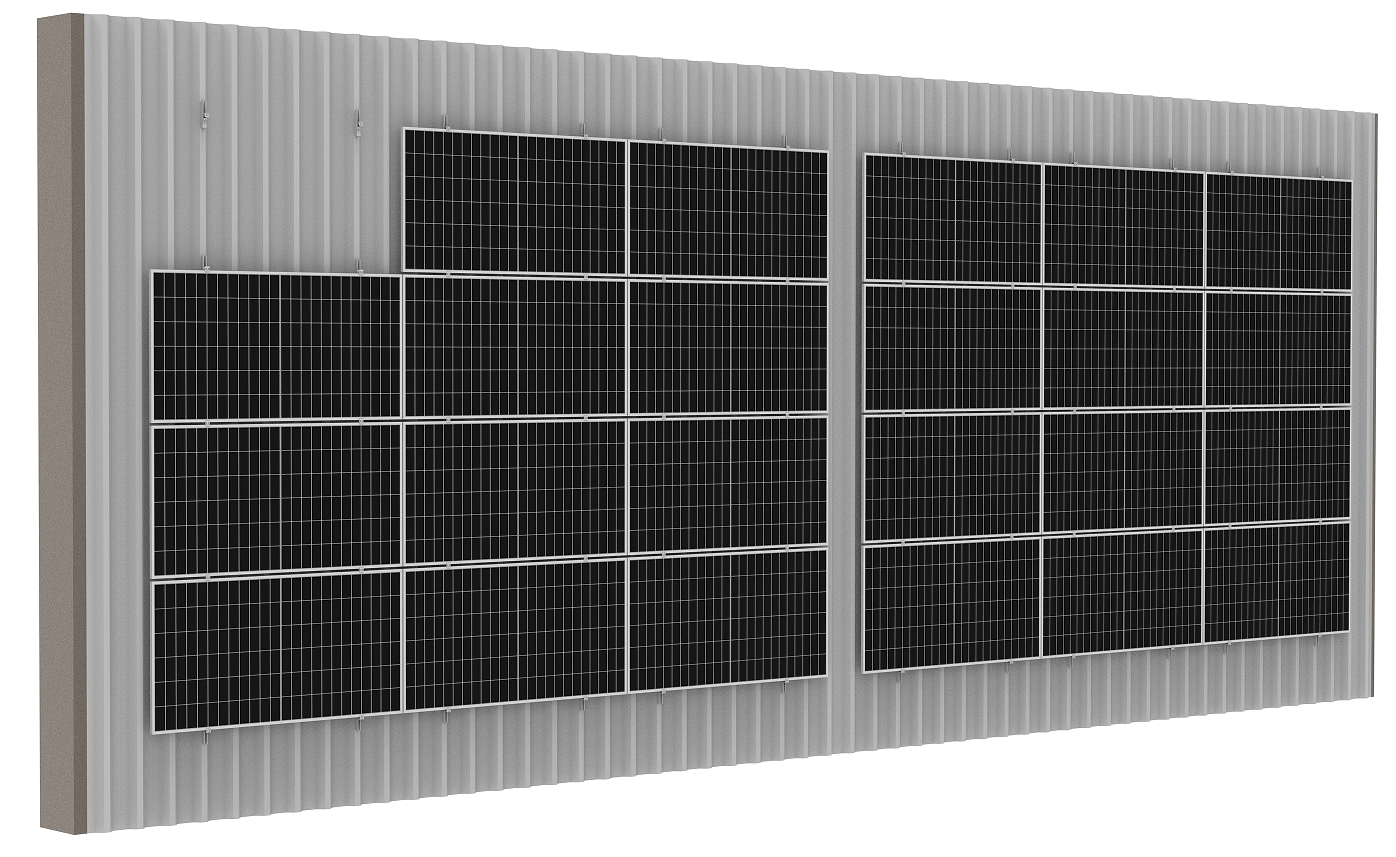

This WOCHN Wallpv Facaderail system to make efficient use of space is made by matching the mini rails in different ways.It provides stable and beautiful photovoltaic installation for cement walls and some mental sheet walls. Whether it is residential or commercial installation, it can achieve more worry-free installation, more reliable structure and higher efficiency.
